Standard equipment
- Single, tandem, and tridem axle jeep setups available

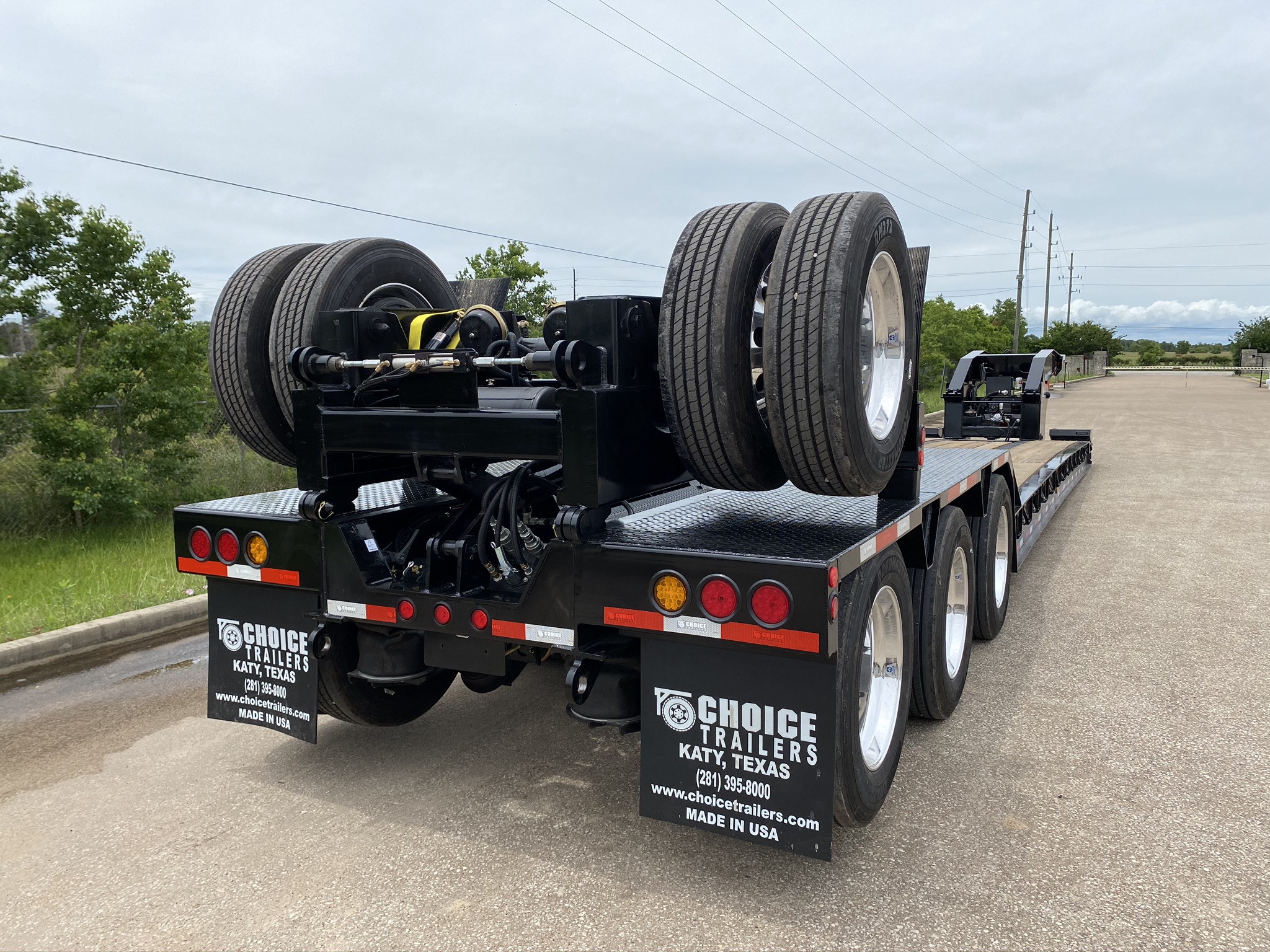

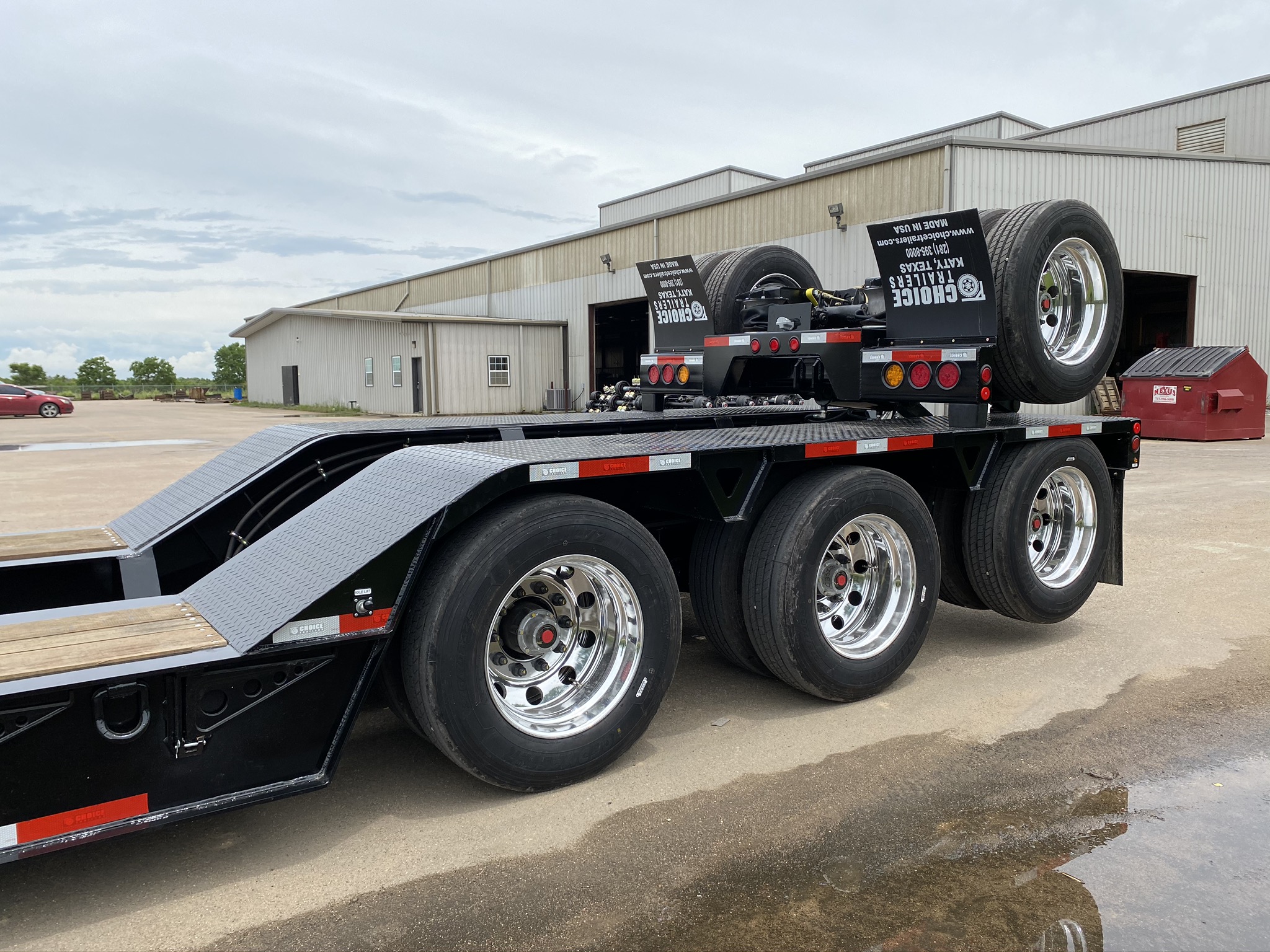

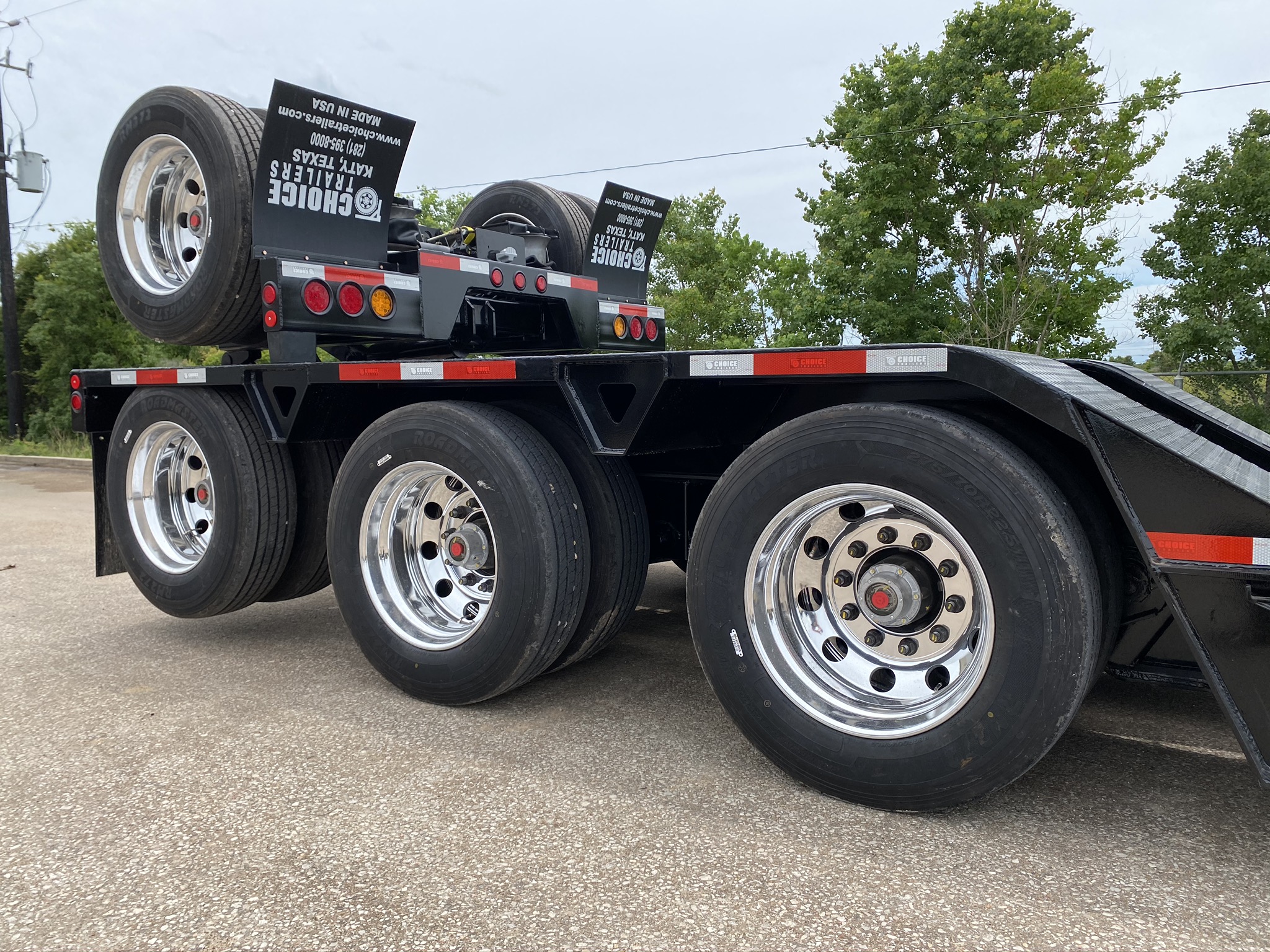

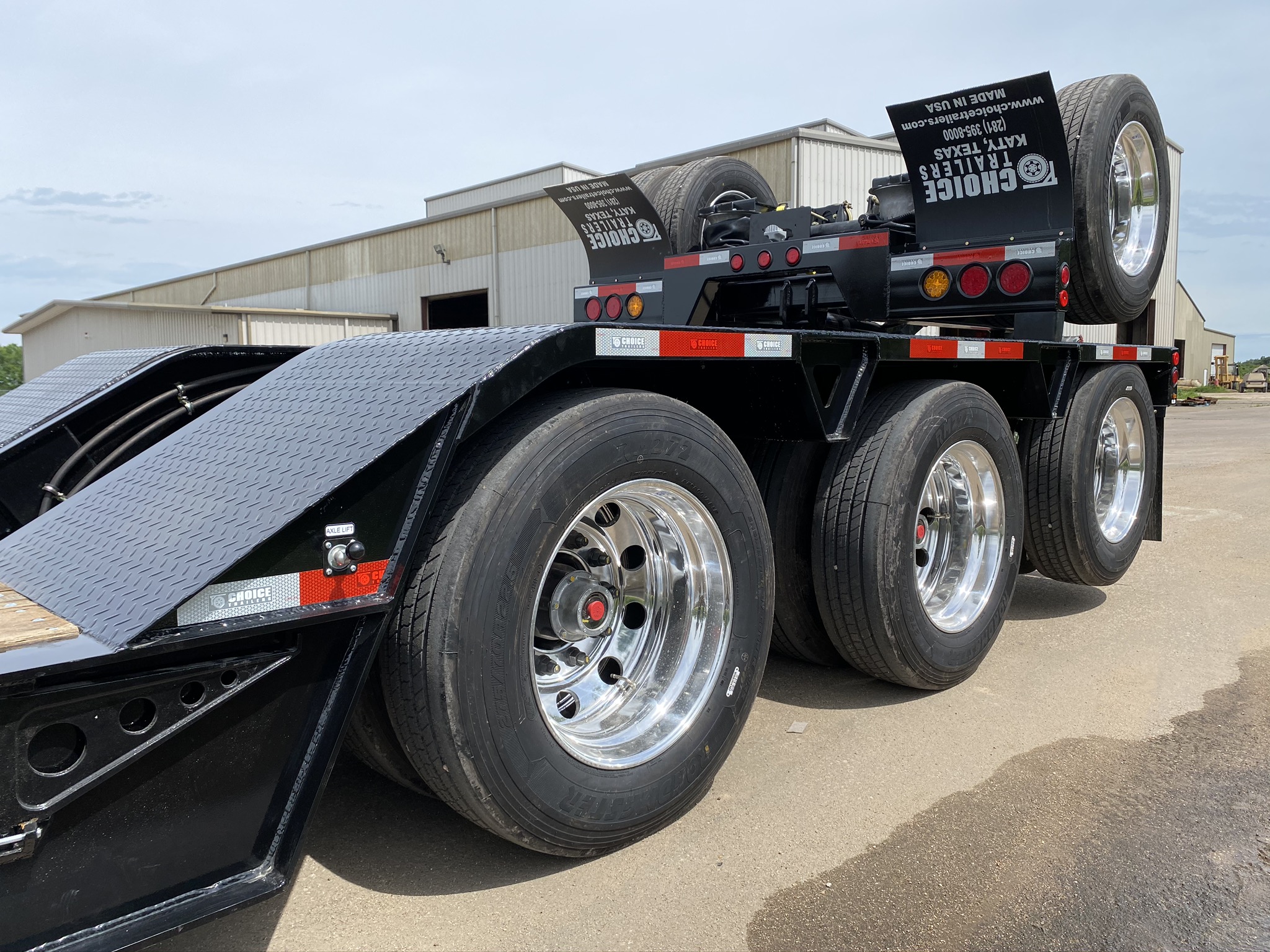

- Flip axle (hydraulic or manual)
- 3,000 psi (10 gpm) operating pressure
- 2-part polyurethane primer and paint
Product LineSeries AX

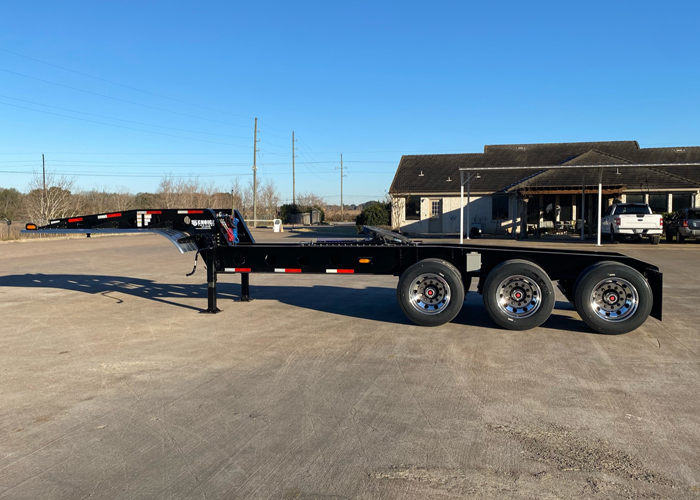

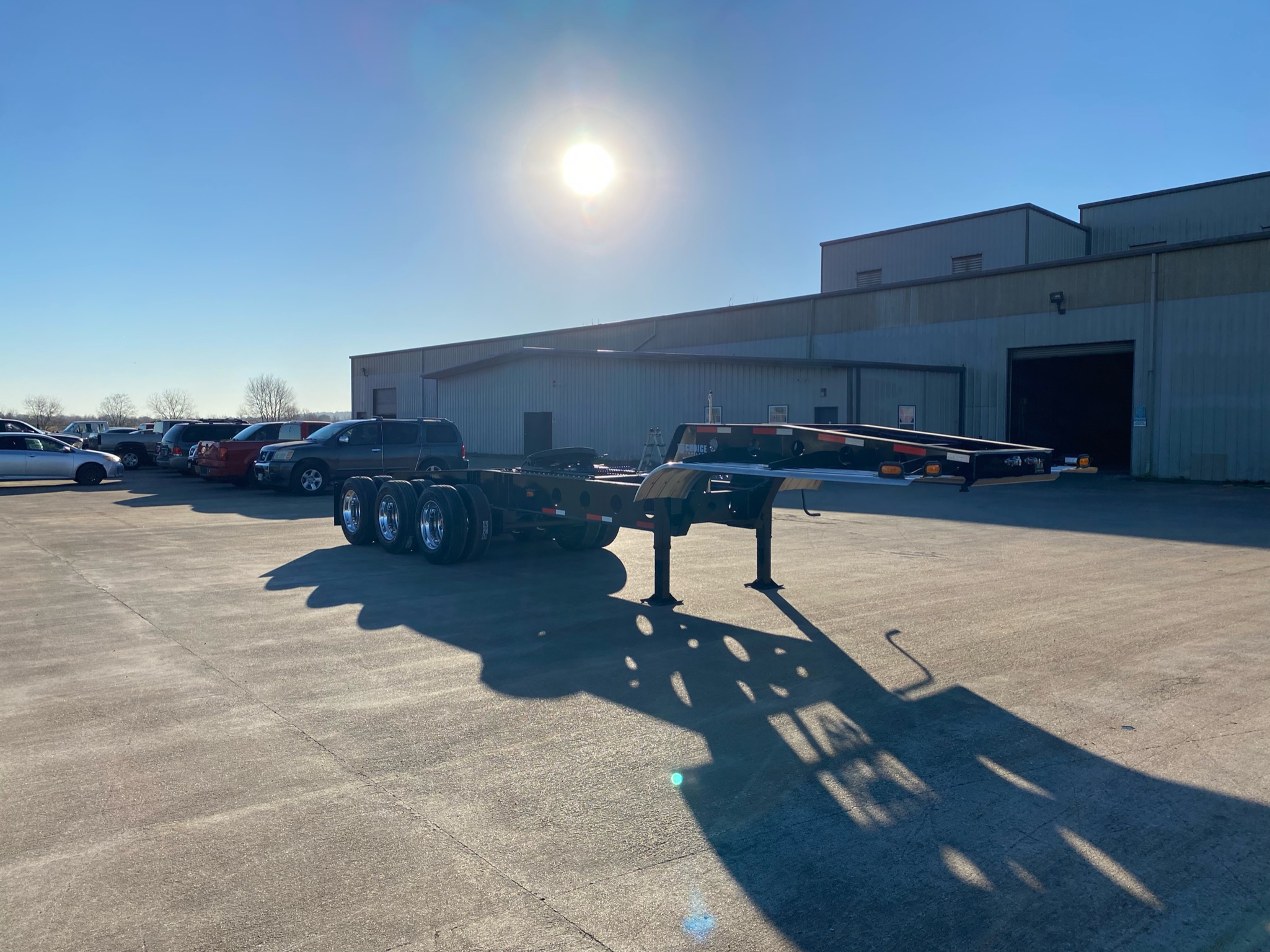

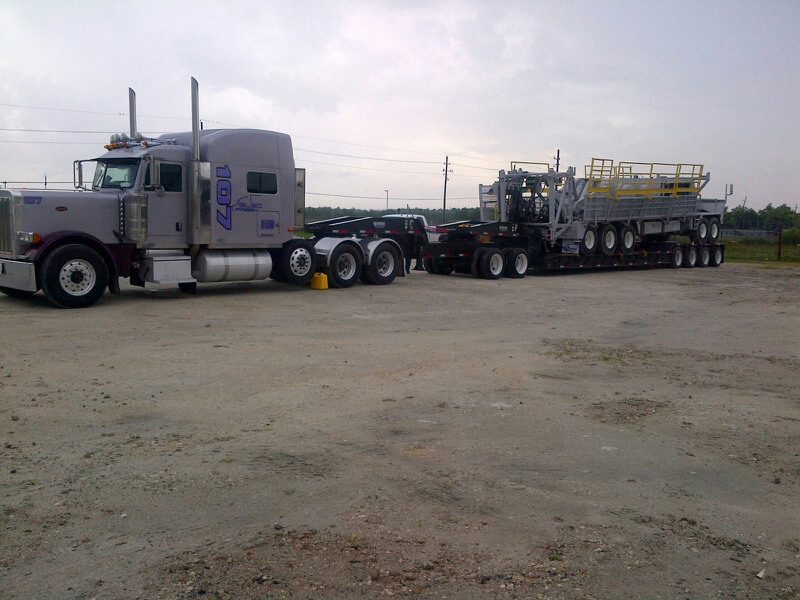

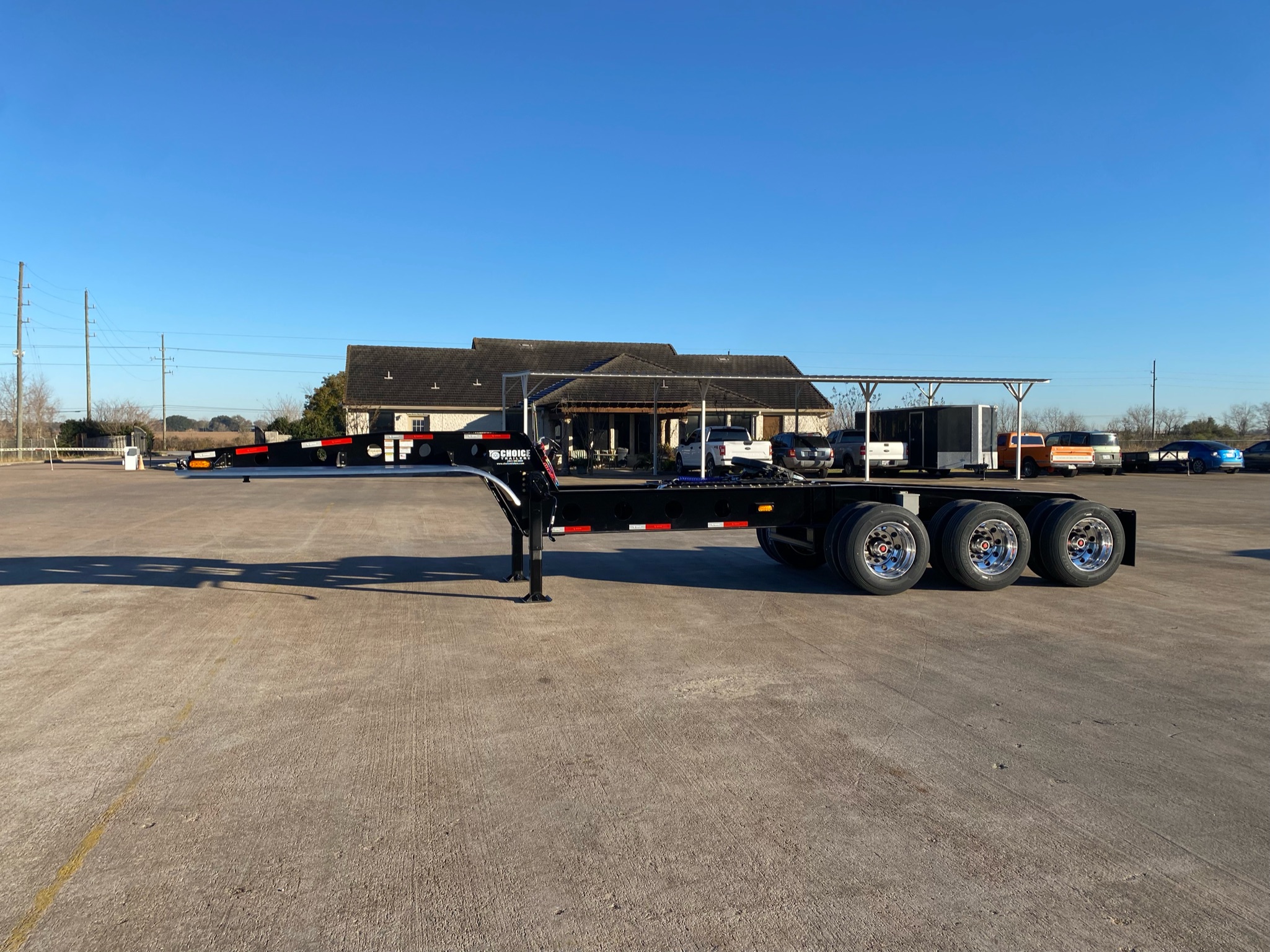

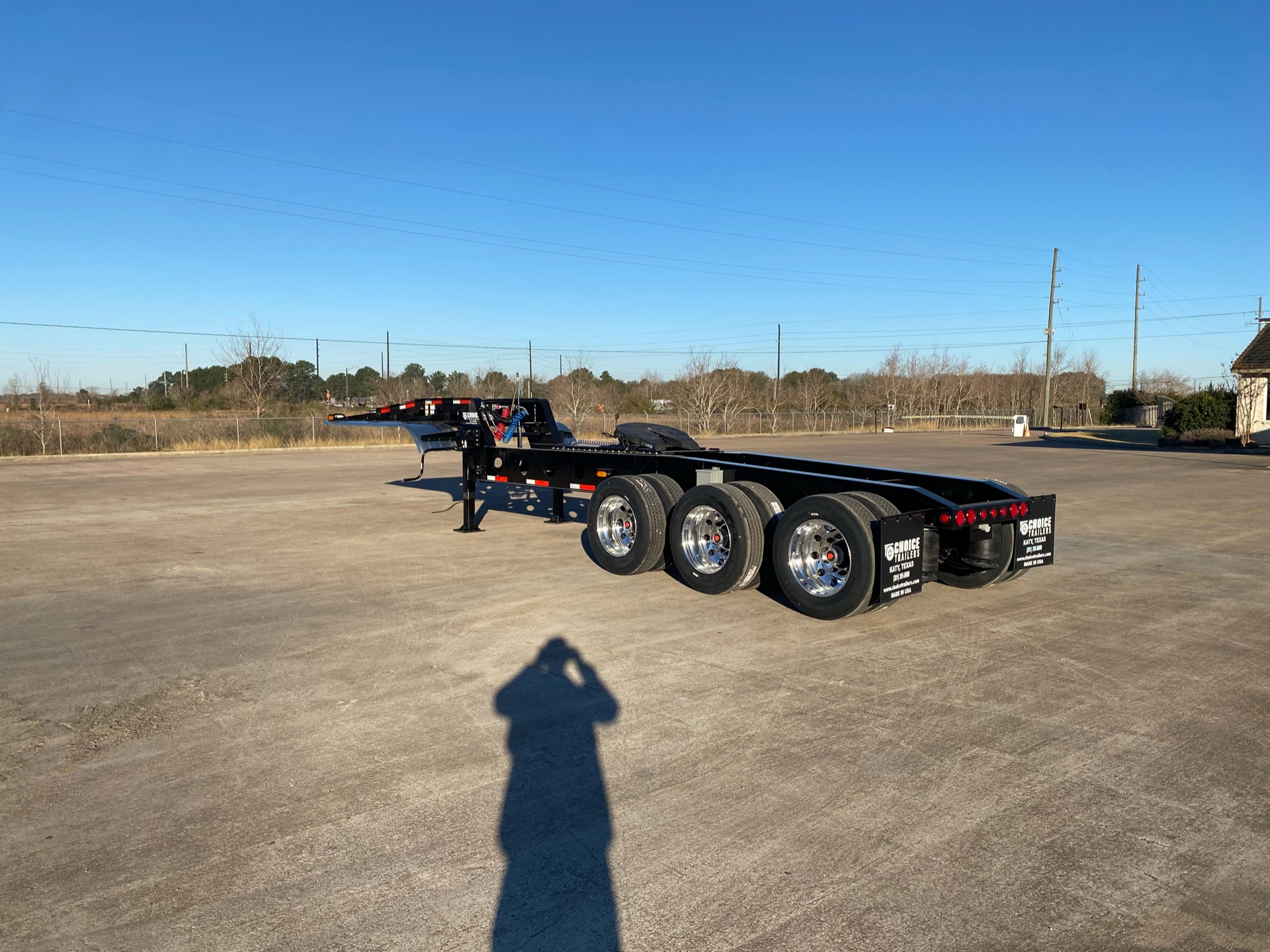

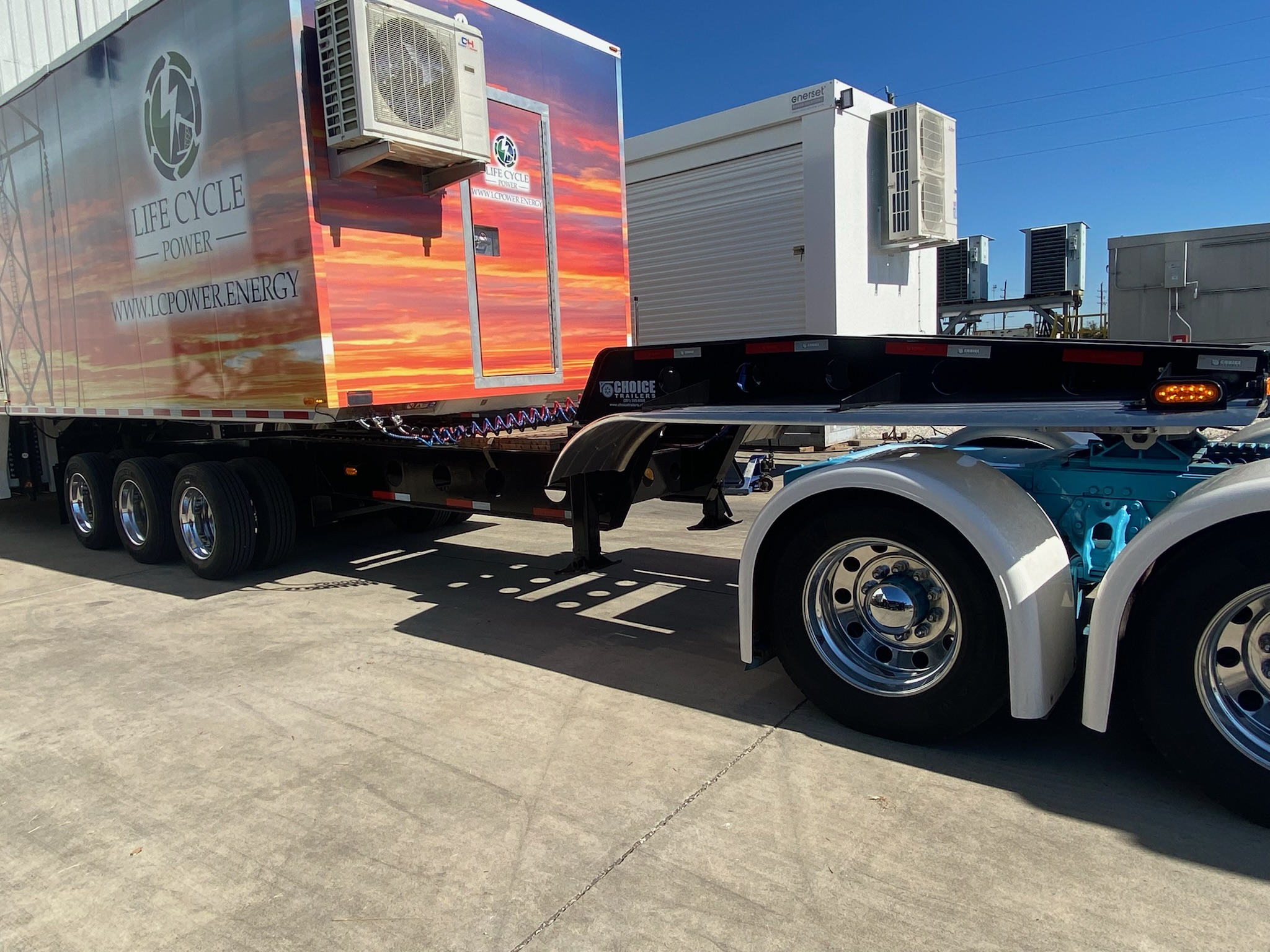

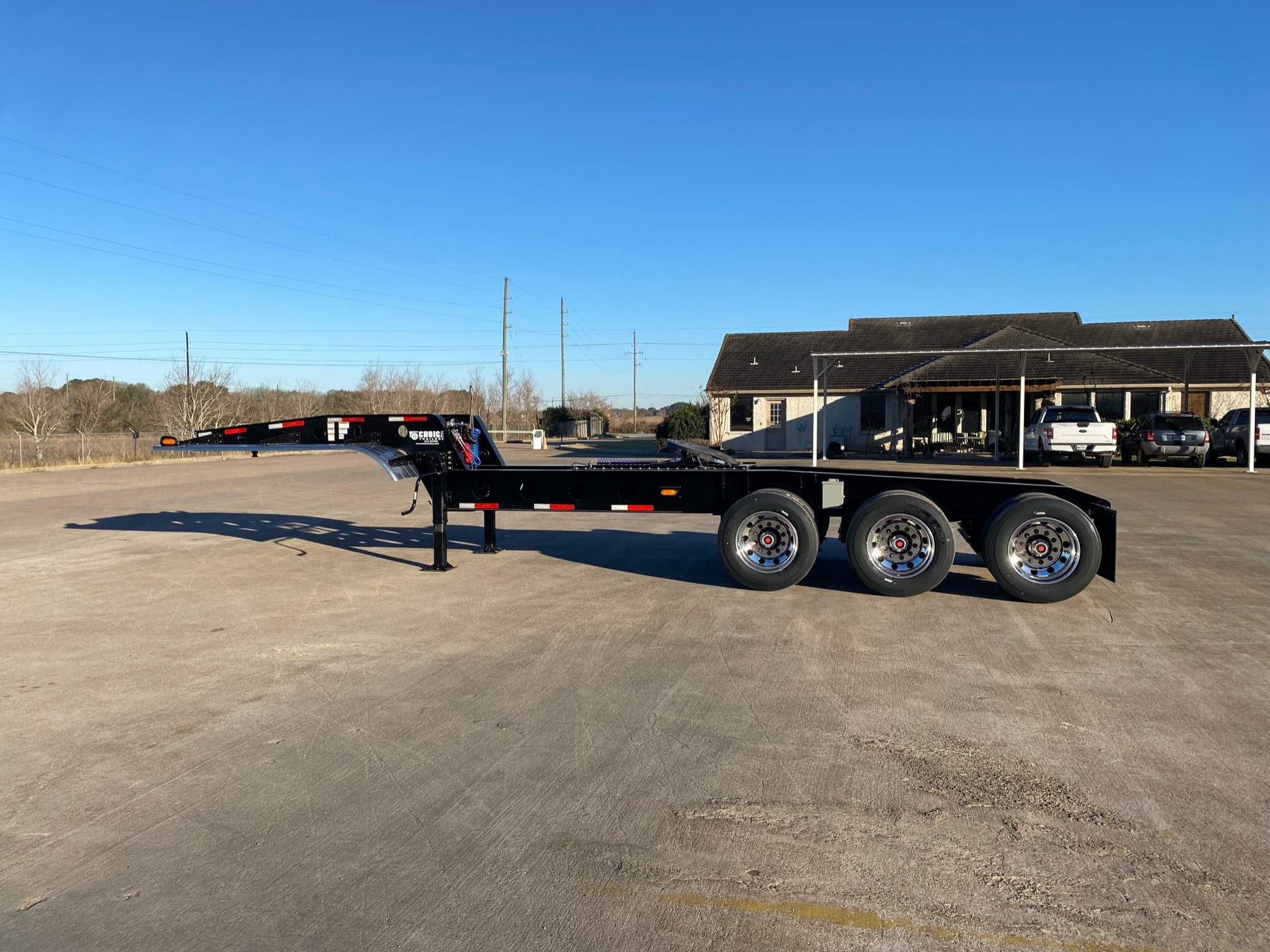

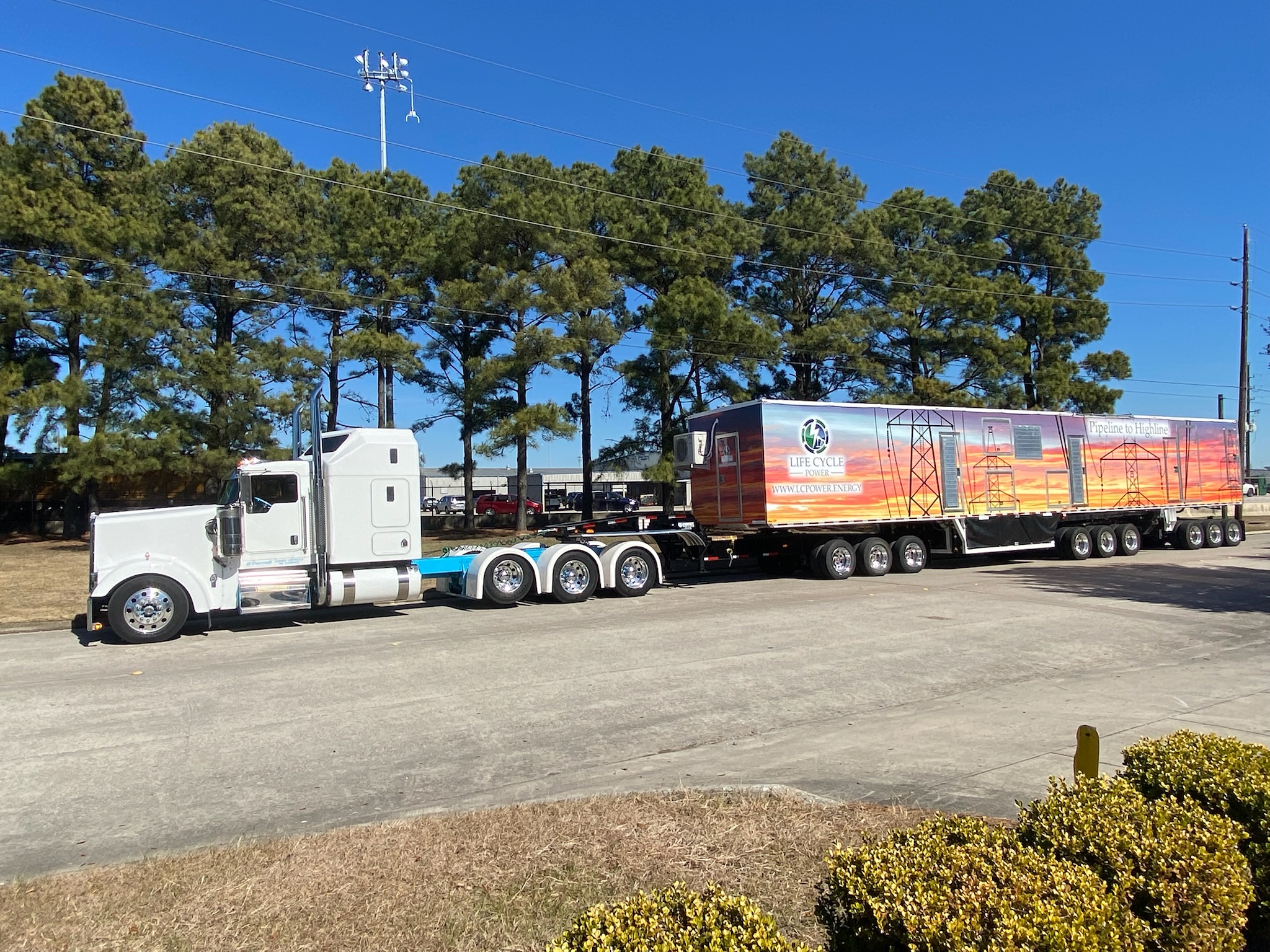

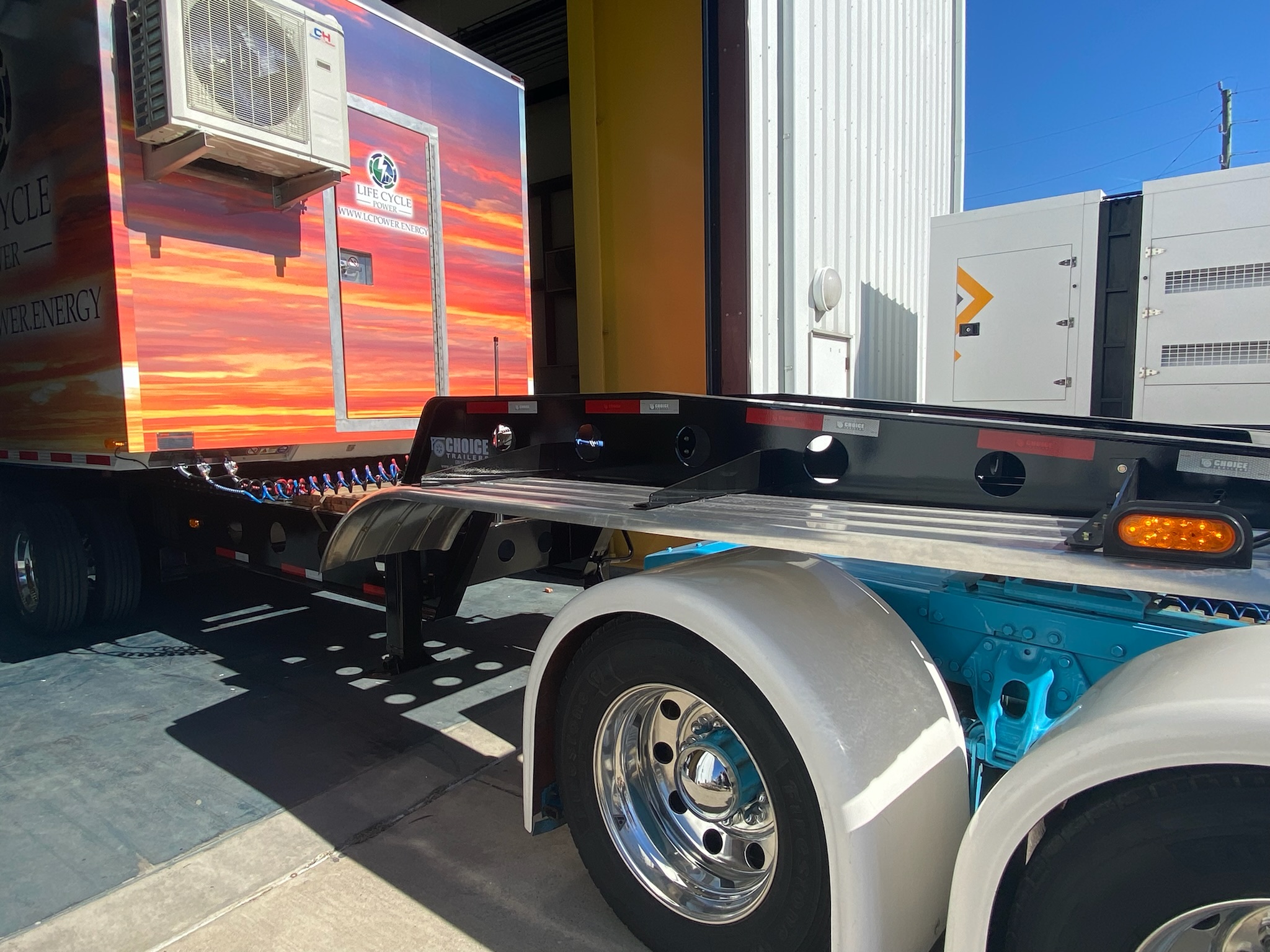

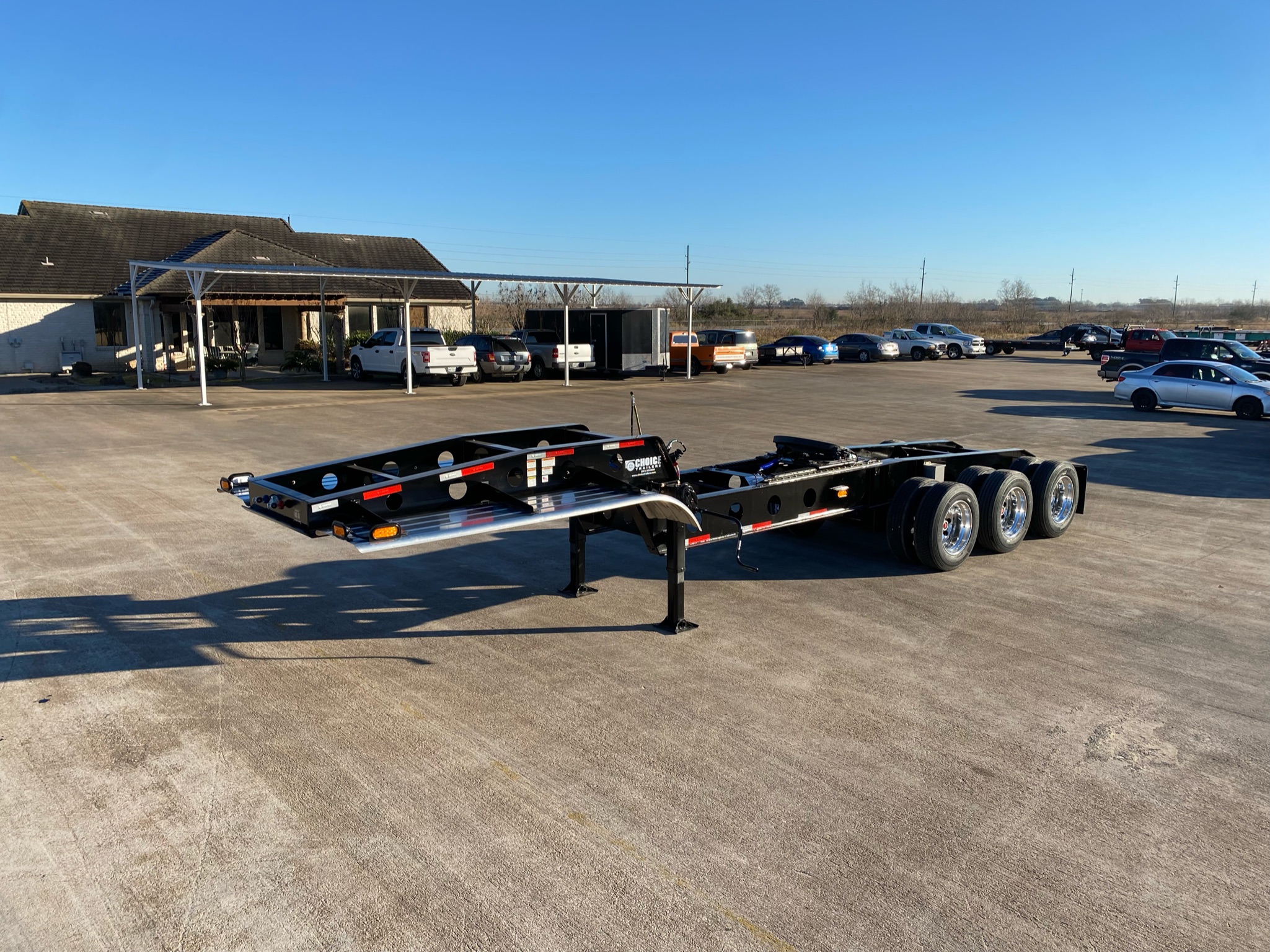

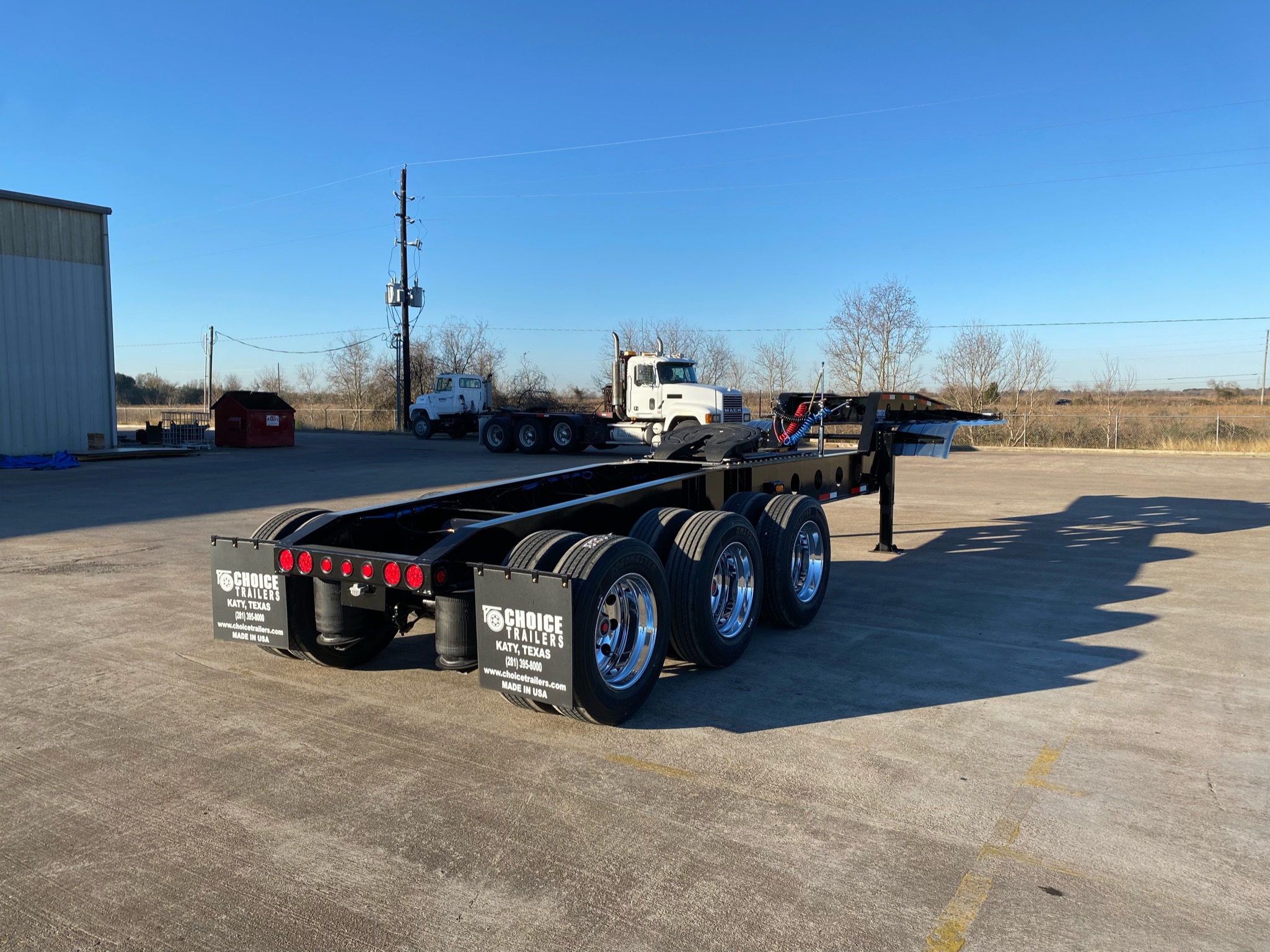

Stingers, Boosters and Jeeps

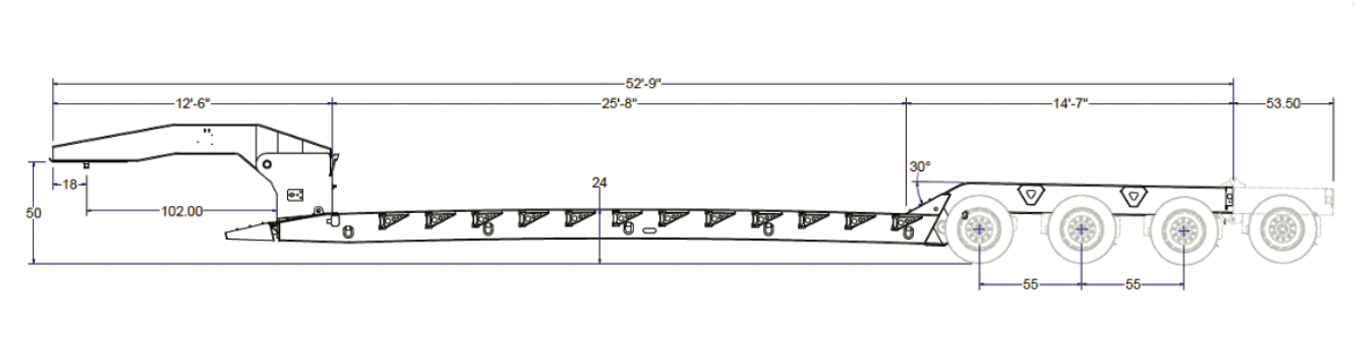

Capacity: Single, Tandem and Tridem Axle Standard Axle Spacing: 49", 55" and 60" 5th Wheel: 49"–54" Standard Neck Length: 12' – 6" Standard Width: 102"
Key spec
Capacity: Single, Tandem and Tridem Axle
Key spec
Standard Axle Spacing: 49", 55" and 60"
Key spec
5th Wheel: 49"–54"
Key spec
Standard Neck Length: 12' – 6"
Key spec
Standard Width: 102"
Family overview
A STARTING POINT FOR
REAL-WORLD HAULING REQUIREMENTS.
Choice families are built to give buyers a proven direction, not trap them in a one-size-fits-all trailer. Use the standard configuration as a baseline, then tighten the build around the load, timeline, and jobsite demands you actually have.
Best next step
If this family looks close to what you need, the fastest move is to talk through your spec sheet with sales. If timing matters more than customization, check whether there is matching inventory available now.
Equipment breakdown
Suspension & axles
- 25,000 lb air ride suspension
- 25,000 lb nominal axles
- Adjustable air ride
- 49", 55", and 60" axle spacing options
Wheels & tires
- 8.325" x 22.5 10-hole pilot mount steel disc wheels
- 255/70R22.5, 16-ply radial tires
Electrical system
- D.O.T.-approved sealed 12V electrical and lighting system
- LED lights
- 3 tail lights per side, mid-turn signals
Optional equipment
- Lift axle

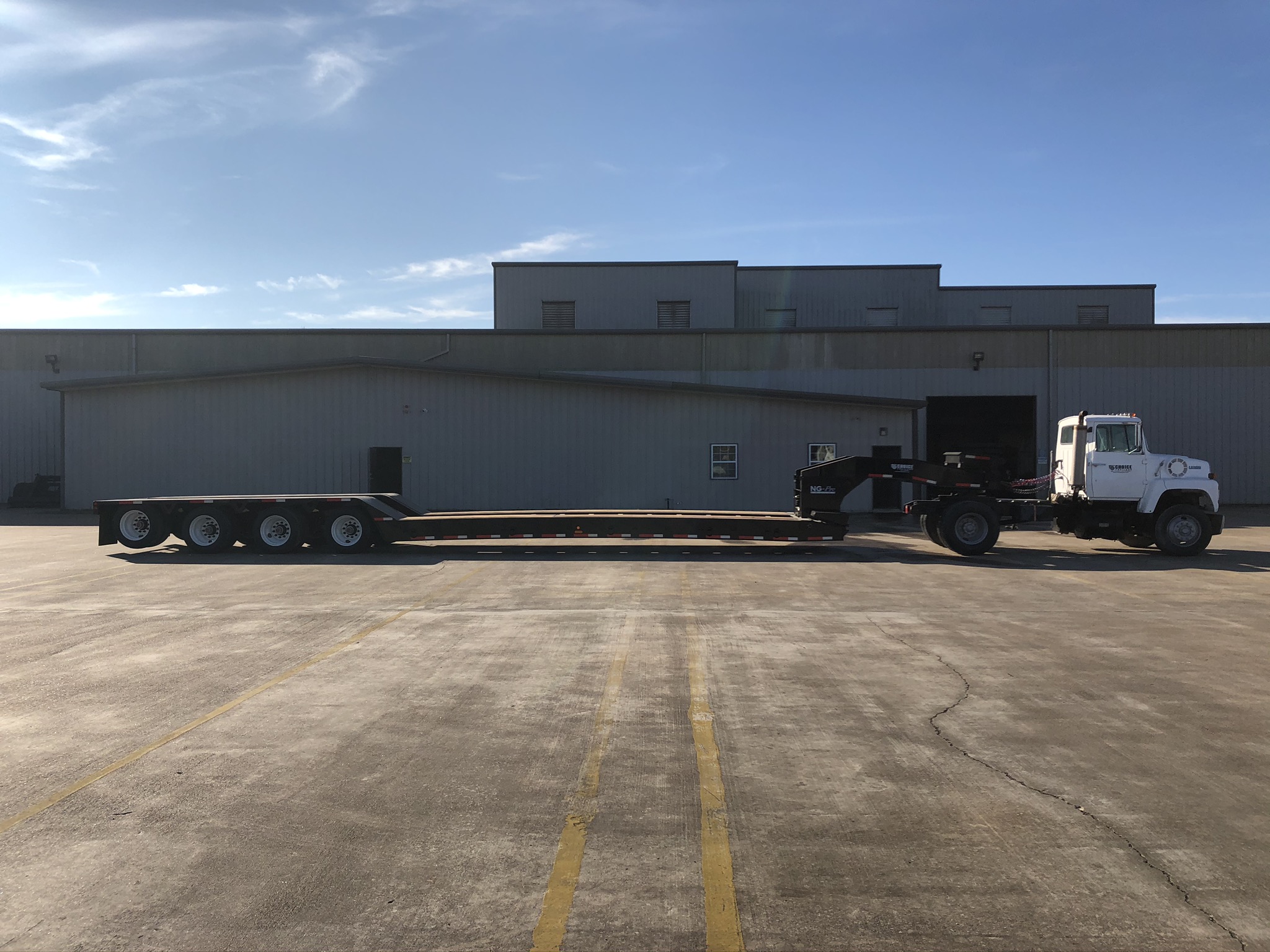

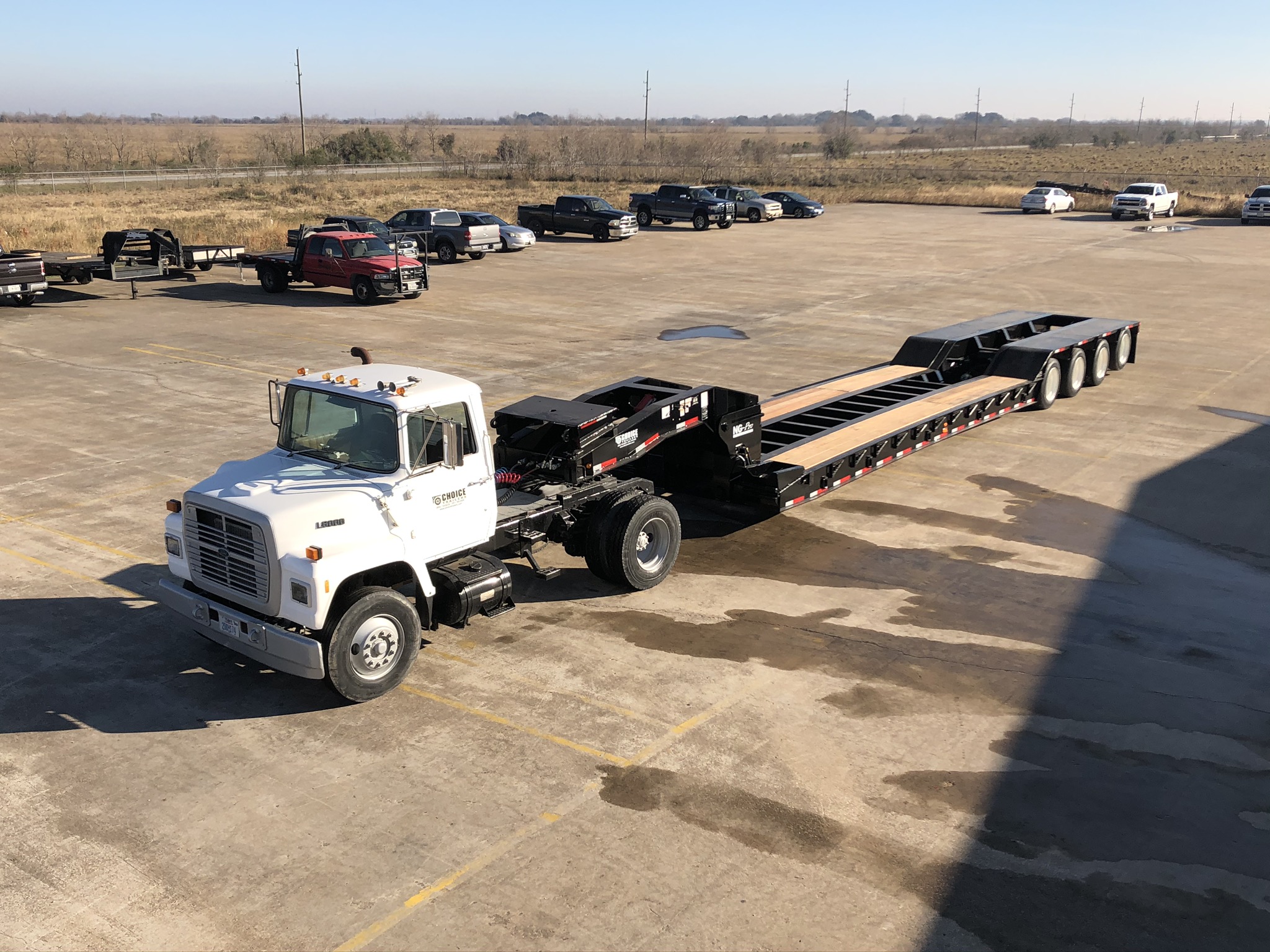

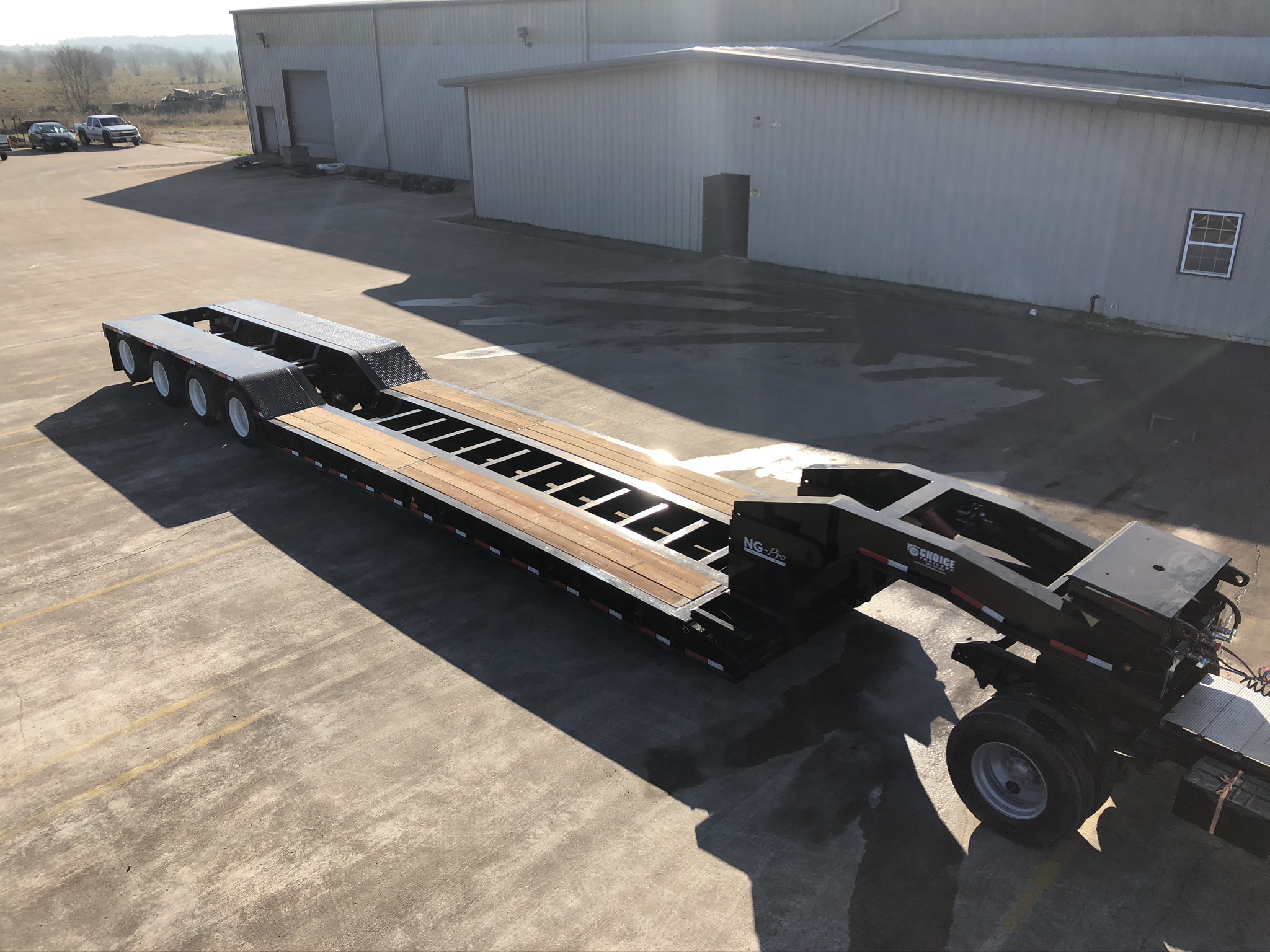

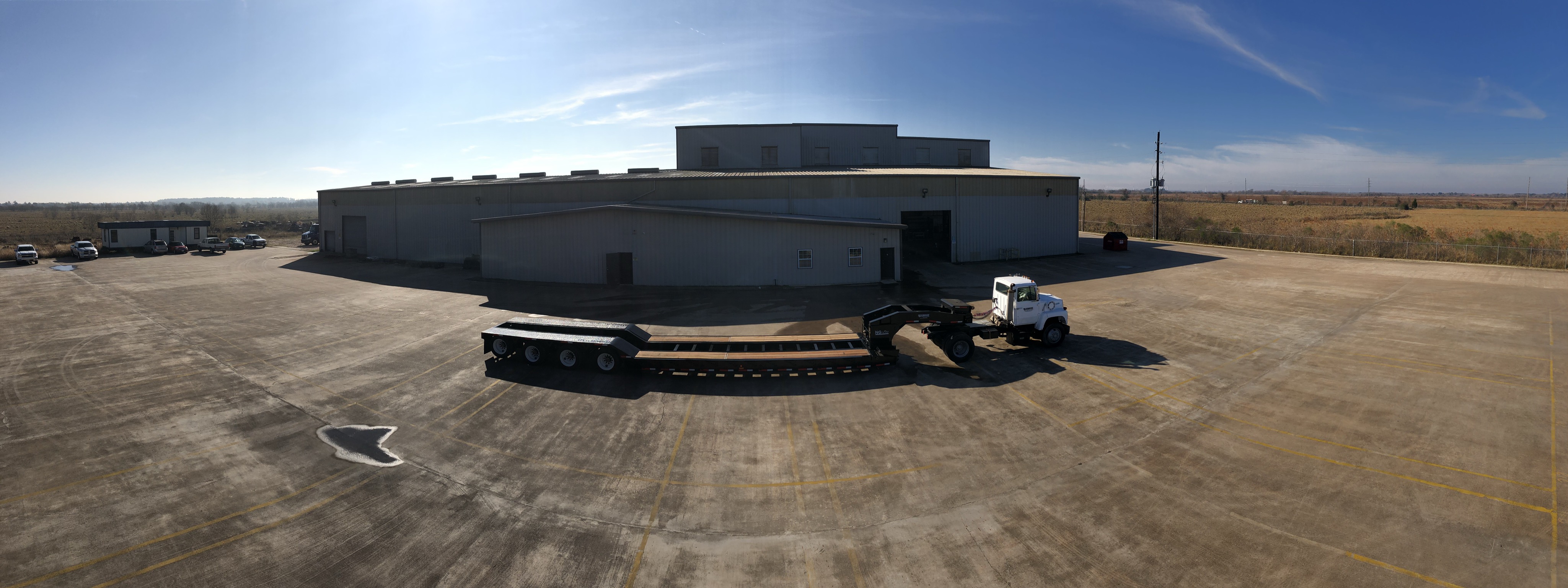

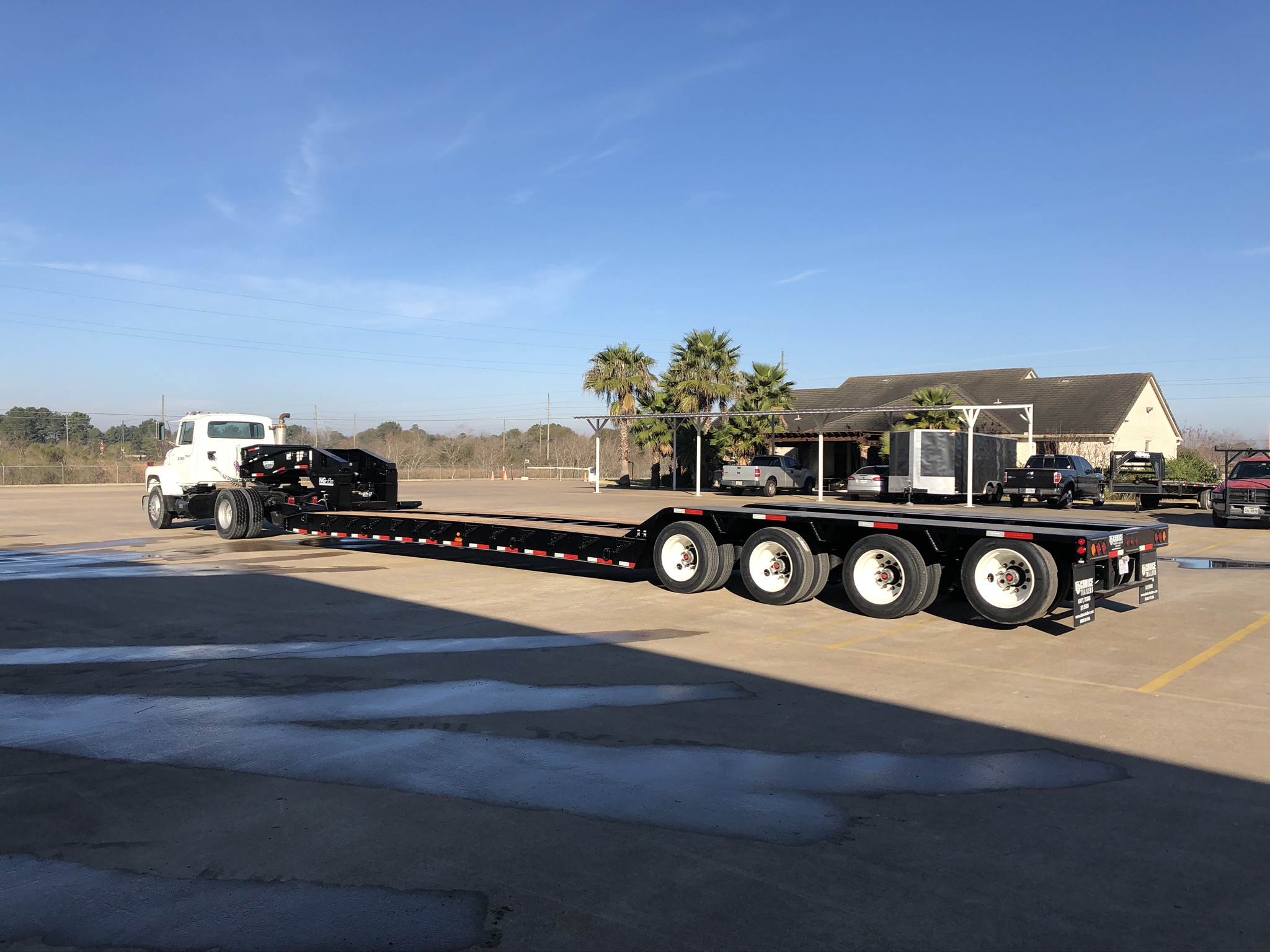

- Flip neck extension
- Load-bearing wheel covers
- Custom kingpin height
- Removable outriggers
- Front fenders
- Tire inflation system
- Aluminum wheels
- Disc brakes
- Steering axles
Buying guidance
Most buyers land here to answer two questions: “Is this the right trailer family?” and “Do I need a custom variation?” This page is built to make both calls faster.
- Use the brochure when you need a portable spec sheet for internal review.
- Use the inventory route when you need a near-term unit instead of a fresh build cycle.
- Use the sales conversation when your load or operating constraints require custom engineering.
Custom build path
NEED THIS BUILT YOUR WAY?
That’s the main story at Choice. Use this family as the starting point, then bring your real load, capacity, axle, timeline, and operating requirements into the quote conversation.
