HDG Lowboy Trailers
Spec SheetSeries LB

HDG Lowboy Trailers

Capacity: 35–65 Tons Standard Deck Lengths: 26' – 34' Standard Deck Width: 102" Standard Deck Height: 18–22" Custom Dimensions Available

Request a Quote Download Brochure
Capacity

35–65 Tons

Standard Deck Lengths

26' – 34'

Standard Deck Width

102"

Standard Deck Height

18–22"

Key spec

Custom Dimensions Available

Family overview

A STARTING POINT FOR
REAL-WORLD HAULING REQUIREMENTS.

Choice families are built to give buyers a proven direction, not trap them in a one-size-fits-all trailer. Use the standard configuration as a baseline, then tighten the build around the load, timeline, and jobsite demands you actually have.

Best next step

If this family looks close to what you need, the fastest move is to talk through your spec sheet with sales. If timing matters more than customization, check whether there is matching inventory available now.

Talk to SalesView Available Inventory

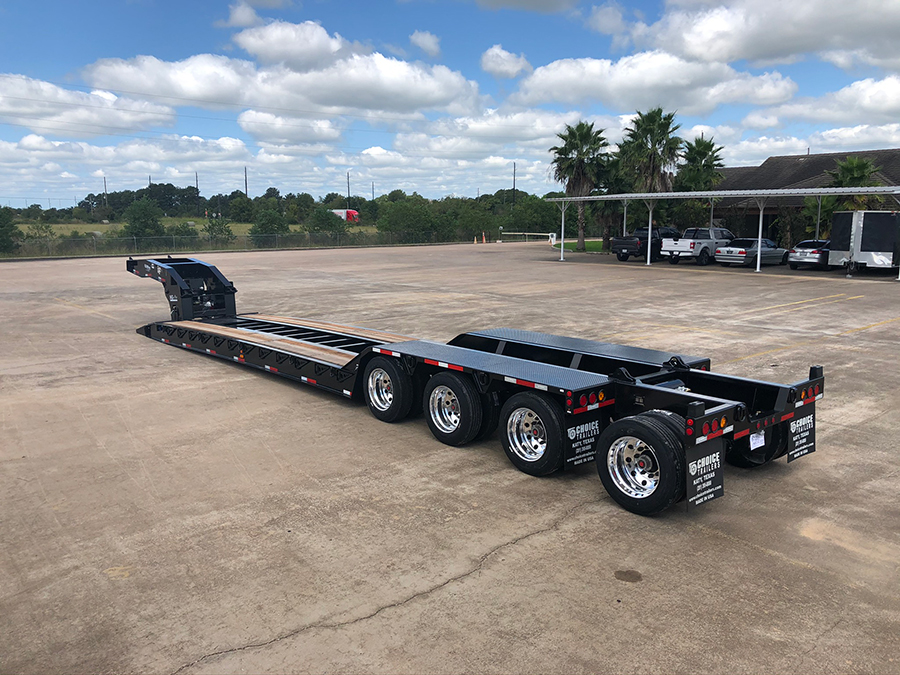

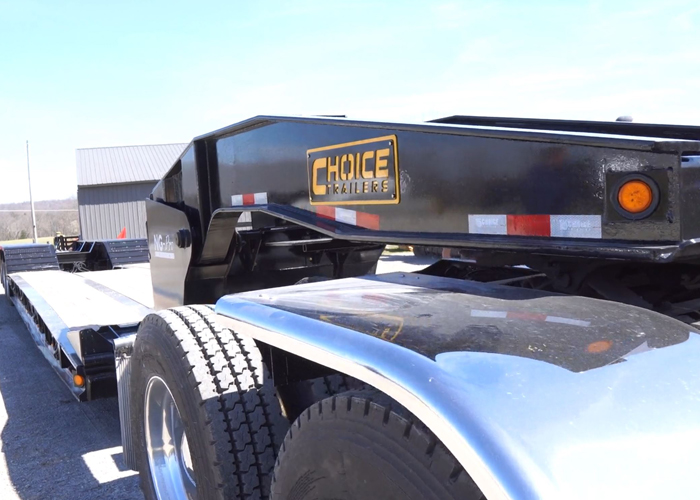

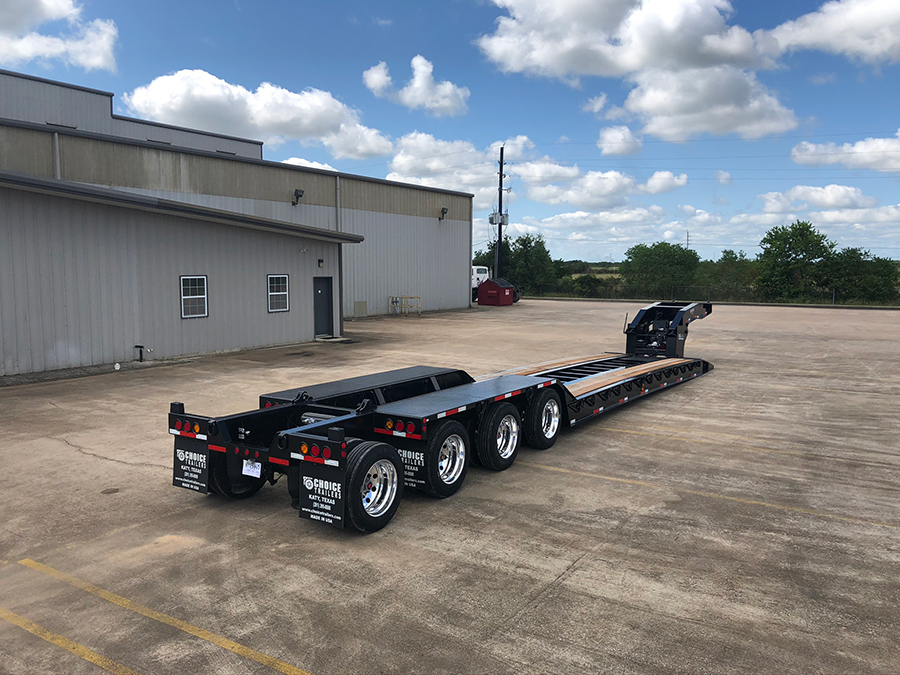

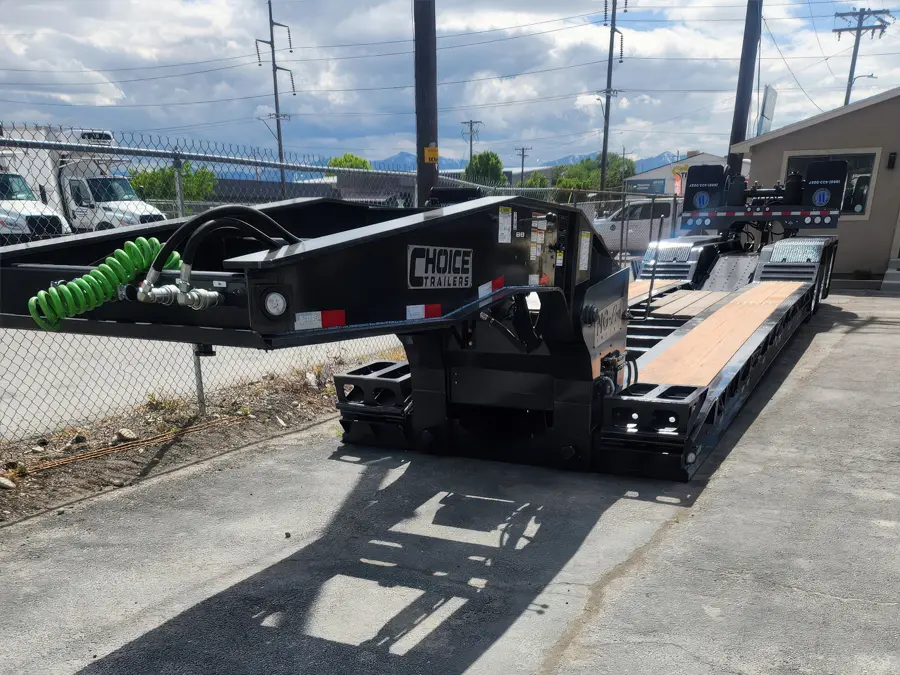

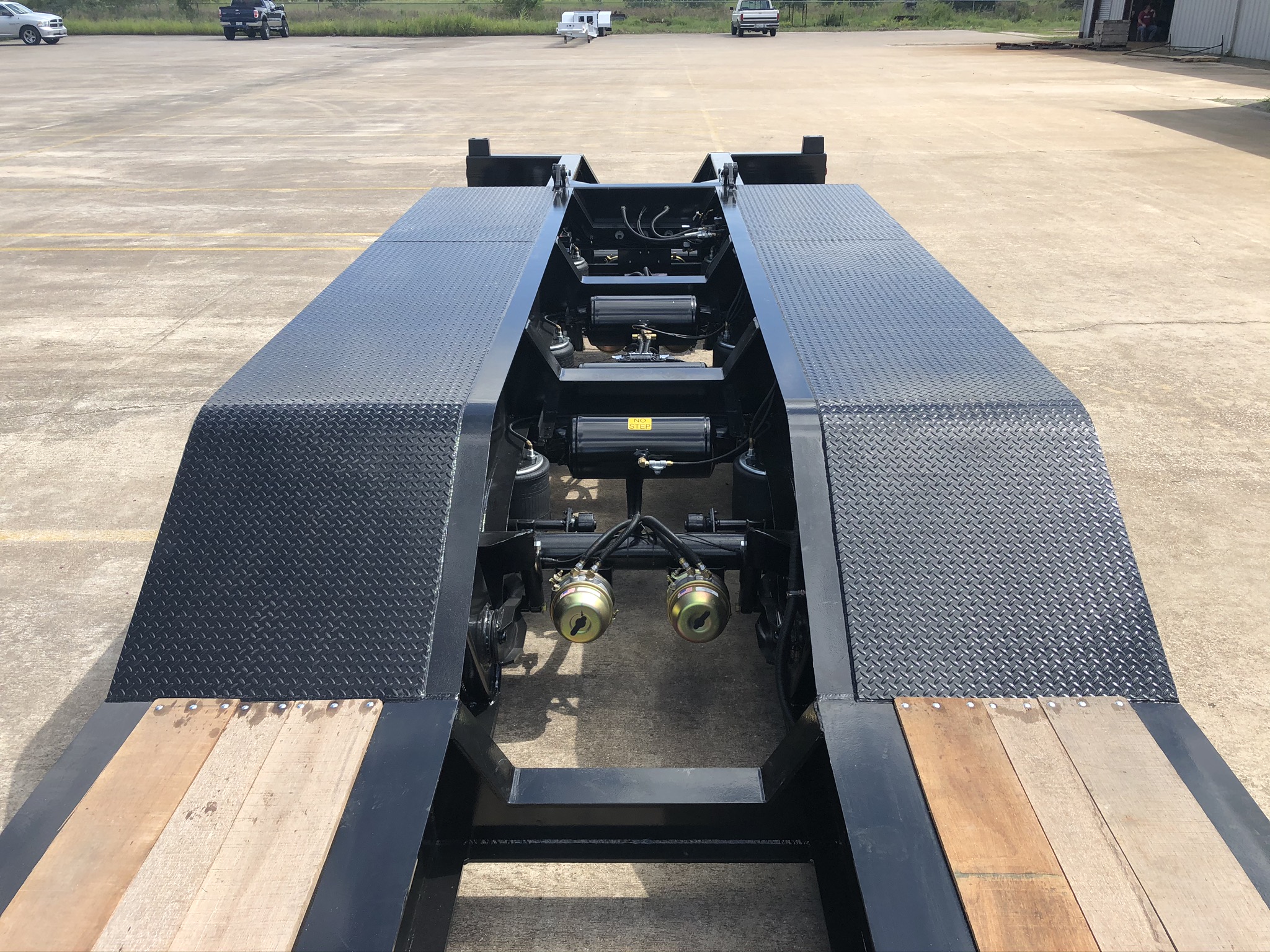

Gallery

HDG Lowboy Trailers up close

13 photos
Equipment breakdown

Standard equipment

  • 55 Ton (110,000 lb) capacity
  • Full capacity in 12' concentration
  • 53' overall length
  • 26' deck length
  • 22" deck height with 6" ground clearance
  • Main deck: 4-beam construction, fully cambered fabricated beams, 100KSI high-tensile T1 steel
  • Expanded metal tool tray at front of main deck
  • King pin 34" and 16"
  • Swing clearance 108" and 90"
  • 5-position ride height

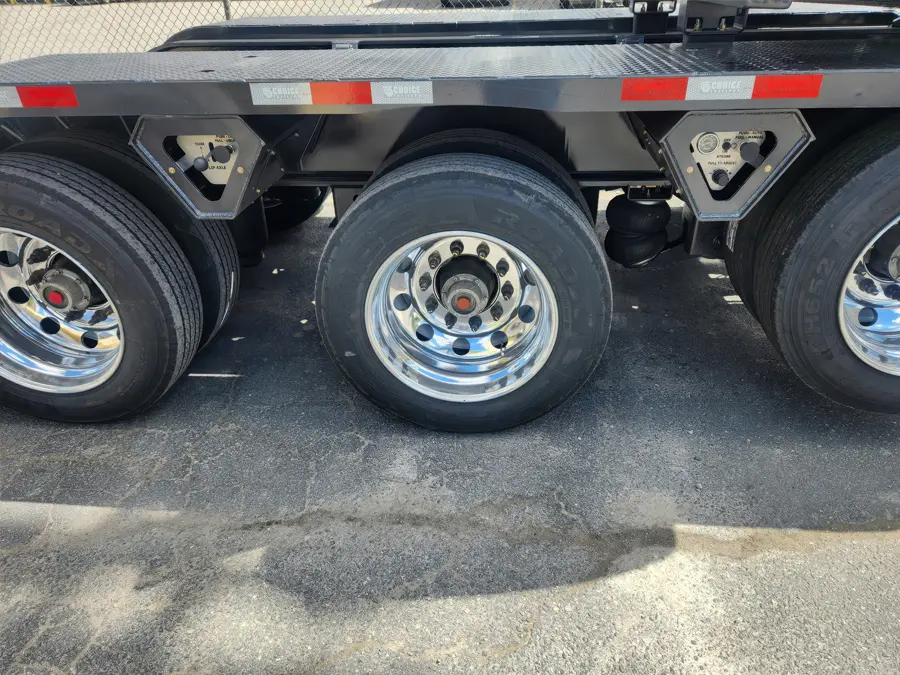

Suspension & axles

  • Air-ride suspension, 25,000 lb capacity
  • Automatic ride height controls with manual override
  • Raise and lower valve
  • 25,000 lb nominal axles, oil-lubricated hubs
  • 77.5" track width
  • 55" axle spacing
  • Lift axle equipped on third axle standard

Wheels & tires

  • Steel disc wheels, hub-piloted type, white
  • 255/70R22.5 Load Range H 16-ply steel-belted radial tires

Electrical system

  • D.O.T.-approved sealed 12V electrical and lighting system
  • LED lights
  • 3 tail lights per side, mid-turn signals

Optional equipment

  • Several length options available
  • Self-contained 13hp Honda power
  • Lift axle

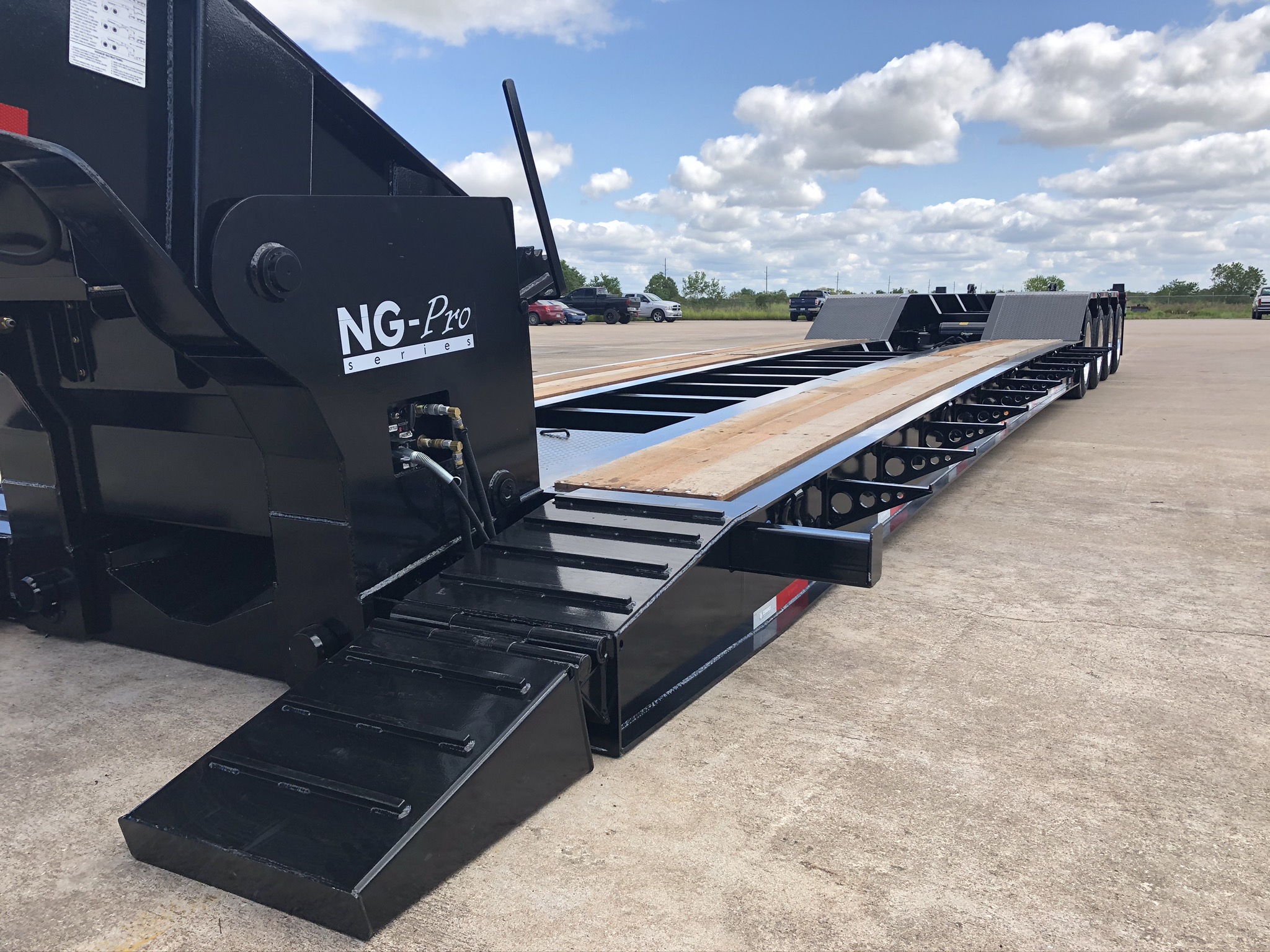

  • Hydraulic ramps

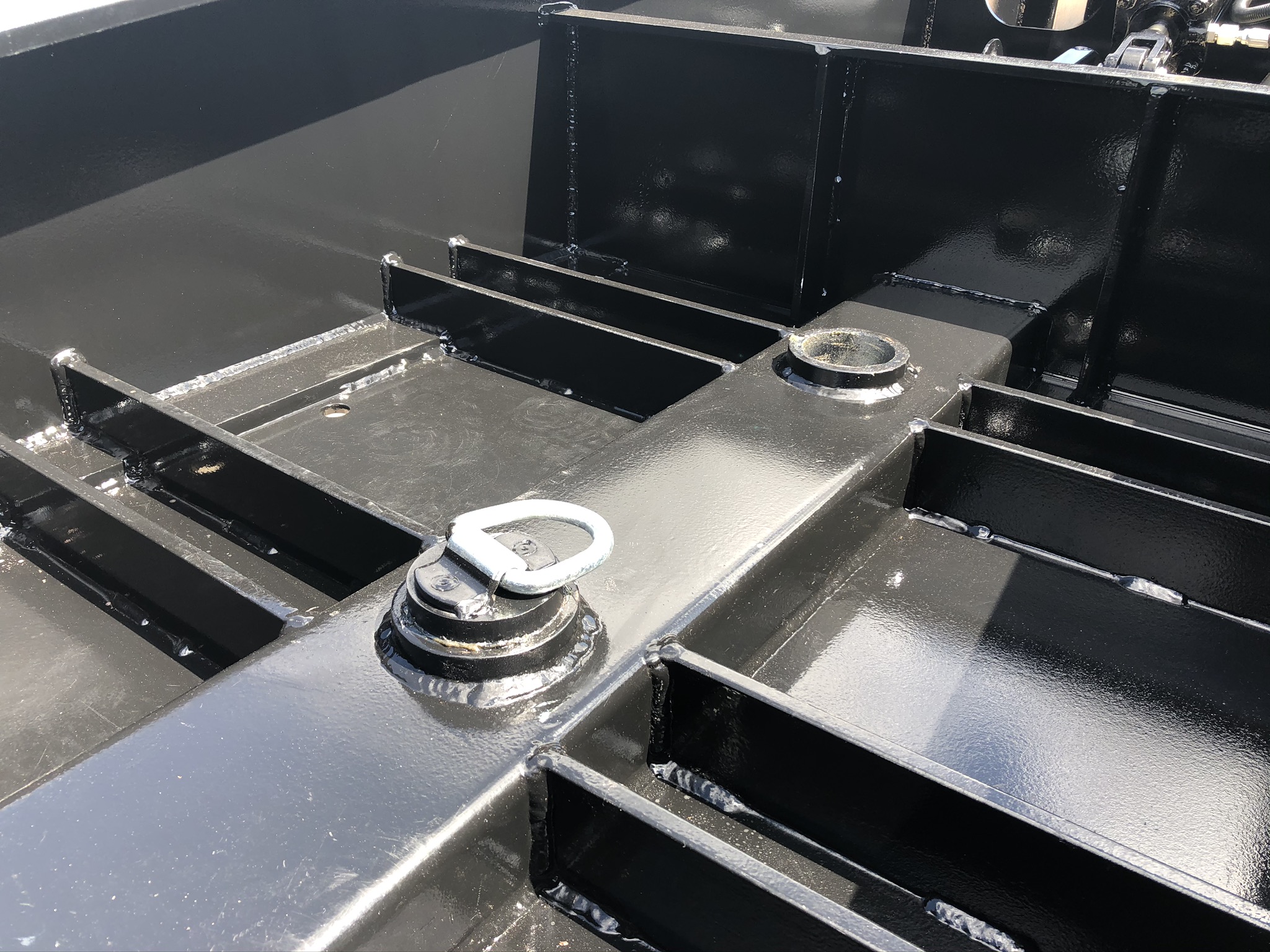

  • Dual kingpin settings

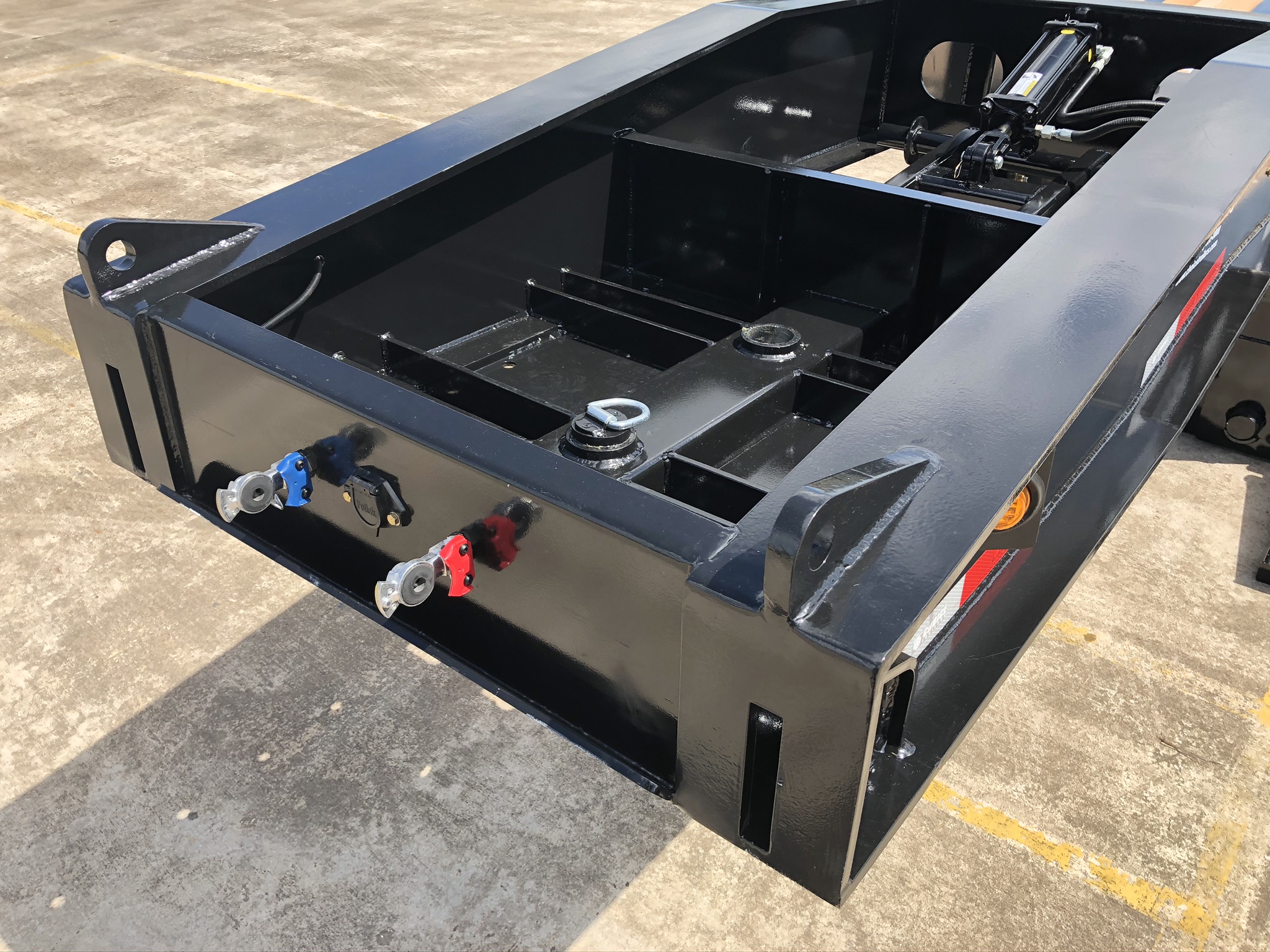

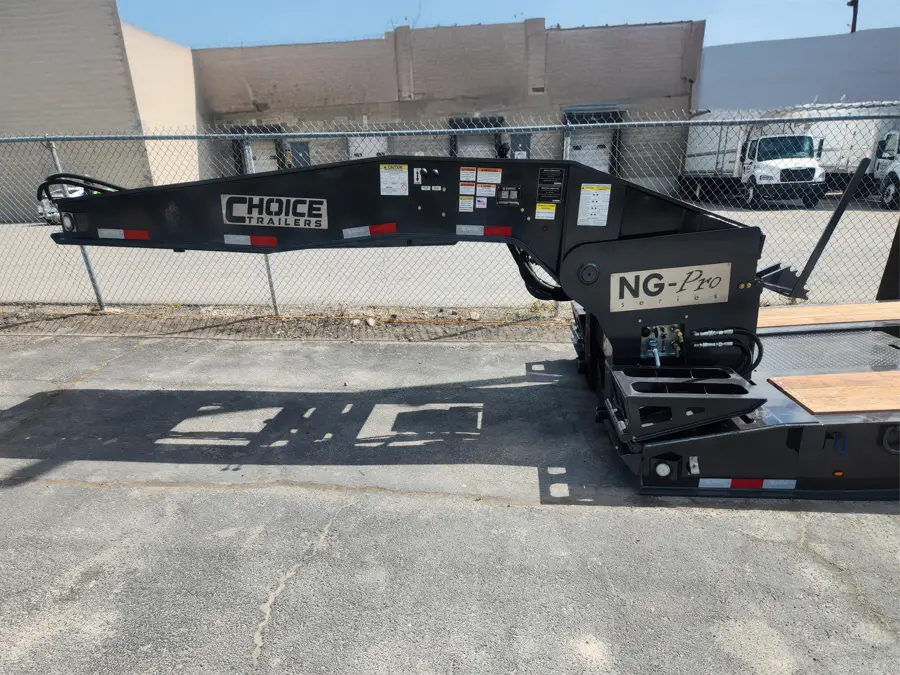

  • Flip neck and bracketry

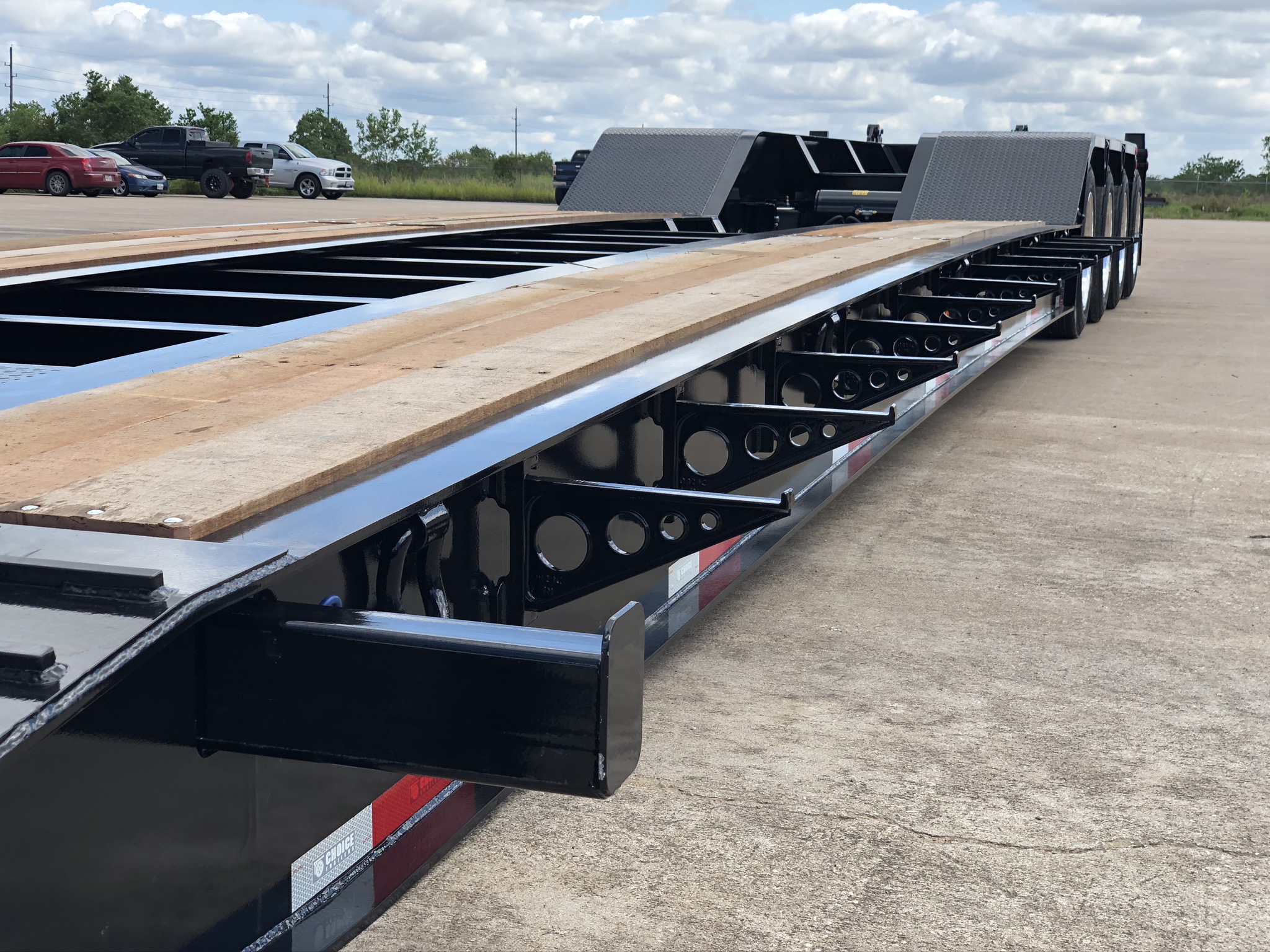

  • Removable outriggers
  • Front fenders and wheel covers
  • Tire inflation system
  • Aluminum wheels

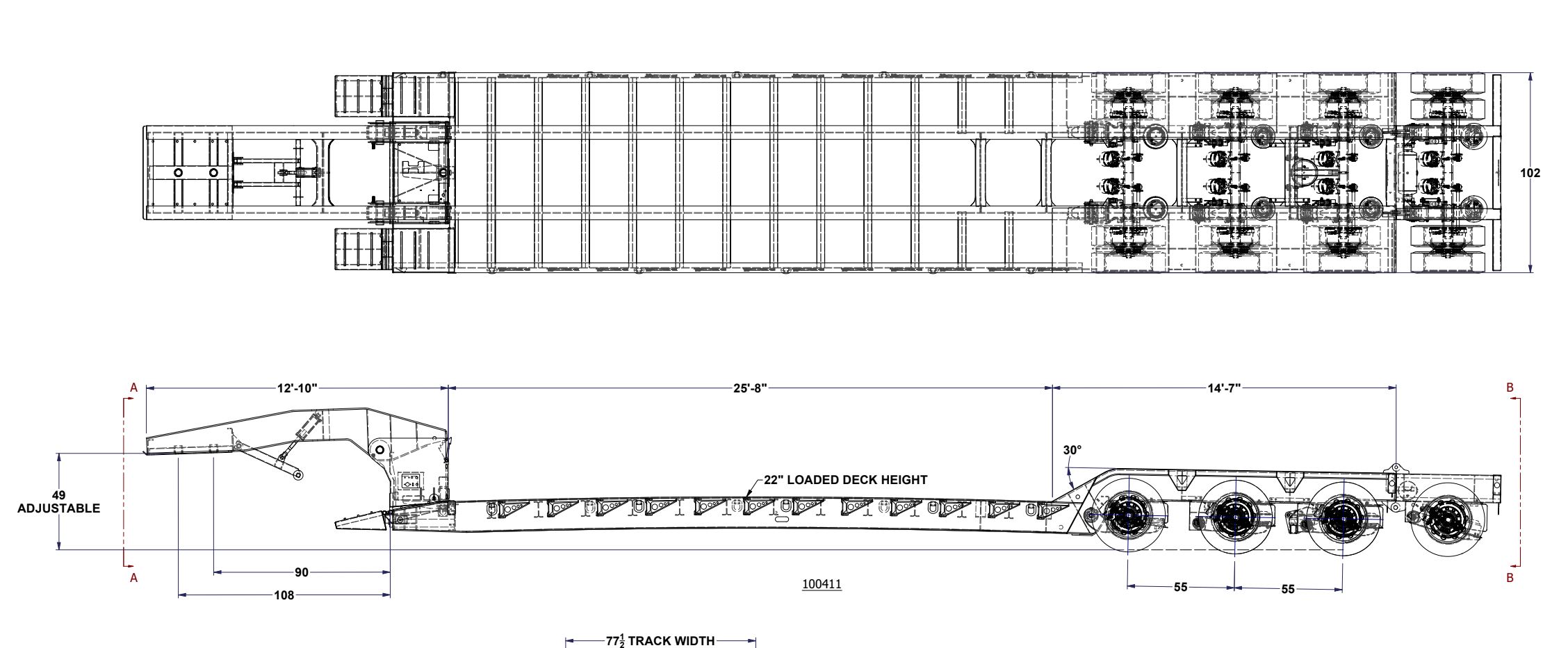

HDG Lowboy Trailers diagram
Buying guidance

Most buyers land here to answer two questions: “Is this the right trailer family?” and “Do I need a custom variation?” This page is built to make both calls faster.

  • Use the brochure when you need a portable spec sheet for internal review.
  • Use the inventory route when you need a near-term unit instead of a fresh build cycle.
  • Use the sales conversation when your load or operating constraints require custom engineering.
Custom build path

NEED THIS BUILT YOUR WAY?

That’s the main story at Choice. Use this family as the starting point, then bring your real load, capacity, axle, timeline, and operating requirements into the quote conversation.

Request a Custom Quote Back to Trailer Families
