Hydraulic Folding Goosenecks
HydraulicSeries FG

Hydraulic Folding Goosenecks

Capacity: 70,000 – 120,000 lbs Standard Deck Length: 25' Standard Rear Deck Length: 14' – 11" Standard Neck Length: 9' – 8" Standard Deck Width: 102"

Key spec

Capacity: 70,000 – 120,000 lbs

Key spec

Standard Deck Length: 25'

Key spec

Standard Rear Deck Length: 14' – 11"

Key spec

Standard Neck Length: 9' – 8"

Key spec

Standard Deck Width: 102"

Family overview

A STARTING POINT FOR
REAL-WORLD HAULING REQUIREMENTS.

Choice families are built to give buyers a proven direction, not trap them in a one-size-fits-all trailer. Use the standard configuration as a baseline, then tighten the build around the load, timeline, and jobsite demands you actually have.

Best next step

If this family looks close to what you need, the fastest move is to talk through your spec sheet with sales. If timing matters more than customization, check whether there is matching inventory available now.

Equipment breakdown

Standard equipment

  • 18" main beam perimeter frame design
  • Hydraulic folding gooseneck
  • High-tensile steel flanges (100,000 psi minimum yield strength)
  • 10" I-beam cross members, 18" centers
  • 6° front loading angle
  • Tapered nose with lift eye
  • Upper flange reinforcement on neck ramp beams
  • Swing-out style outriggers, 13 per side
  • D-rings, 5 per side
  • 2" drop-in kingpin

Suspension & axles

  • 25,000 lb air ride suspension
  • 25,000 lb nominal axles
  • Adjustable air ride
  • 55" axle spacing

Wheels & tires

  • 8.325" x 22.5 10-hole pilot mount steel disc wheels
  • 255/70R22.5, 16-ply radial tires

Electrical system

  • D.O.T.-approved sealed 12V electrical and lighting system
  • LED lights
  • 3 tail lights per side, mid-turn signals

Optional equipment

  • Self-contained 13hp Honda power
  • Flip axle
  • Lift axle
  • Load-bearing wheel covers
  • Dual kingpin settings
  • Removable outriggers
  • Tire inflation system
  • Aluminum wheels
  • Disc brakes
  • Steering axles

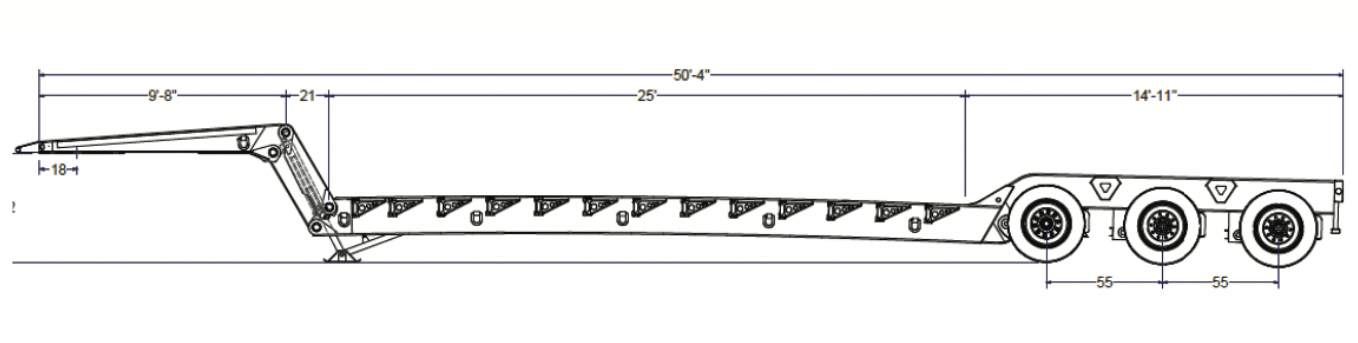

Hydraulic Folding Goosenecks diagram
Buying guidance

Most buyers land here to answer two questions: “Is this the right trailer family?” and “Do I need a custom variation?” This page is built to make both calls faster.

  • Use the brochure when you need a portable spec sheet for internal review.
  • Use the inventory route when you need a near-term unit instead of a fresh build cycle.
  • Use the sales conversation when your load or operating constraints require custom engineering.
Custom build path

NEED THIS BUILT YOUR WAY?

That’s the main story at Choice. Use this family as the starting point, then bring your real load, capacity, axle, timeline, and operating requirements into the quote conversation.
